Application context
When heat treatment must limit exposure to air, the enclosure and gas path become part of the process. This chamber configuration combines front access with a gasketed door, external valves and pressure indication, illustrating the link between sample handling and atmosphere control.
The process challenge
Control the atmosphere around the whole batch
Powders and metal components can respond to oxygen and moisture as well as temperature. Purging the chamber, maintaining a suitable gas path and controlling exposure during cooling are therefore part of the thermal cycle.
Binder-bearing materials introduce an additional requirement: decomposition products must be handled without obstructing the gas circuit or contaminating later batches. For a similar project, we review the material, gas chemistry and exhaust needs before defining the chamber configuration.
- Consider loading, purging, heating and cooling as one atmosphere sequence.
- Specify gas purity and process limits around the material.
- Provide an exhaust arrangement suitable for the decomposition products.
- Select gas monitoring and interlocks for the specified gas package.
The equipment solution
Chamber access, door closure and gas hardware together

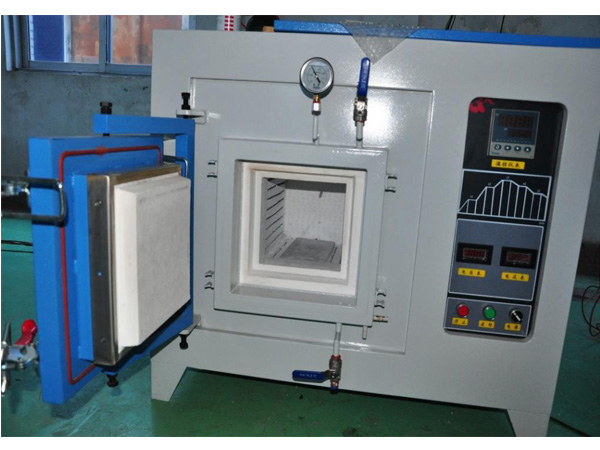

The open door reveals the insulated chamber and a substantial inner door plug. A perimeter gasket surrounds the door assembly. External valve connections and an analog pressure gauge are grouped around the furnace face.
The temperature controller is mounted alongside the chamber, above the operating instruments and switches. The configuration puts atmosphere hardware and thermal controls close to the loading point. Gas composition, pressure limits and any evacuation equipment form part of the application-specific specification.
- 01Front opening for arranging trays and fixtures.
- 02Insulated door plug and perimeter gasket form the closure assembly.
- 03External valves and pressure indication support the specified gas circuit.
Equipment details
- Insulated rectangular chamber with side heating channels
- Door plug and perimeter gasket
- Analog pressure gauge above the chamber
- External valves and side temperature controls
Practical value
How the design supports the process
| Process priority | Equipment design | Practical purpose |
|---|---|---|
| Batch access | Front-opening chamber | Trays and fixtures can be arranged directly through the entrance. |
| Atmosphere enclosure | Gasketed closure with insulated plug | The thermal enclosure and gas boundary are addressed together. |
| Operator interface | Visible gauge, valves and side controls | Key operating points are grouped around the furnace face. |
An atmosphere furnace is specified as a complete thermal and gas system. The enclosure shown illustrates that integration. Material compatibility, purge effectiveness and exhaust design are the next decisions for a comparable project.
For your project
Planning a similar installation
For a comparable requirement, the following checks help connect the equipment specification to the process you need to run.
- 01
Define the gas, purge sequence and operating pressure for the load.
- 02
Check door alignment and leak-test the assembled gas circuit.
- 03
Review exhaust routing, monitoring and interlocks for the selected gases.
- 04
Verify temperature and atmosphere conditions through the full cycle.
