🧩 Product Overview

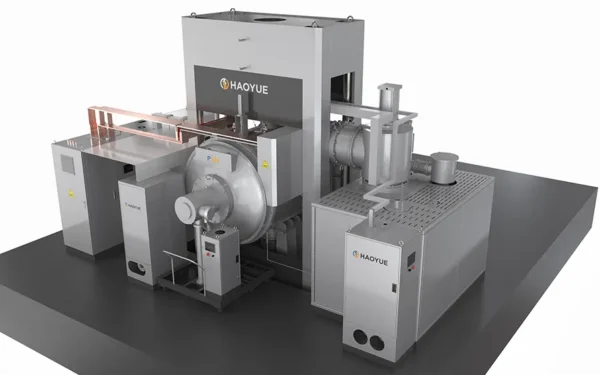

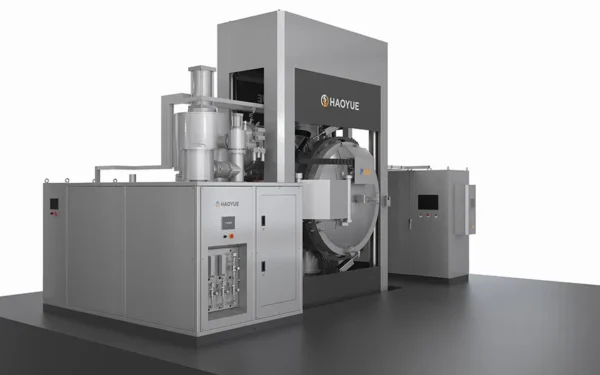

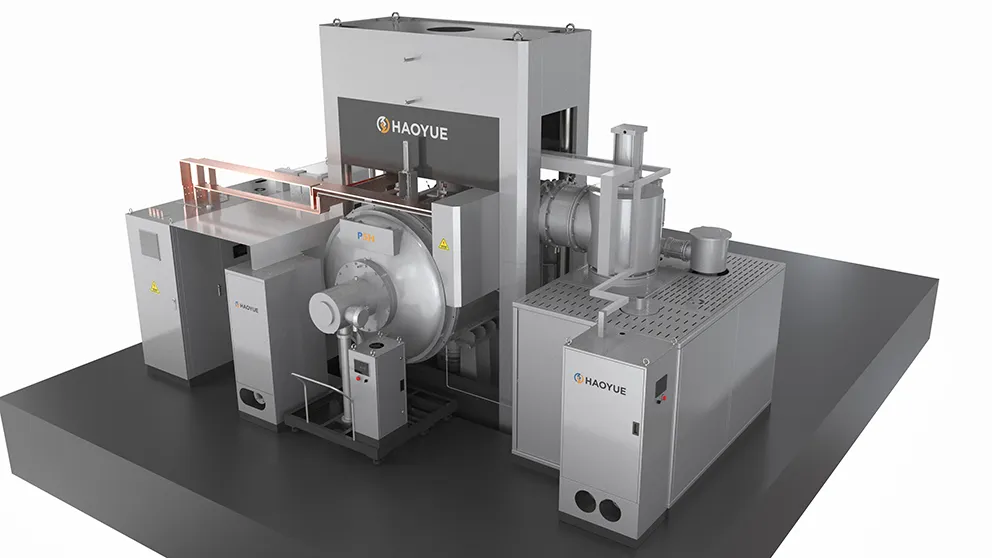

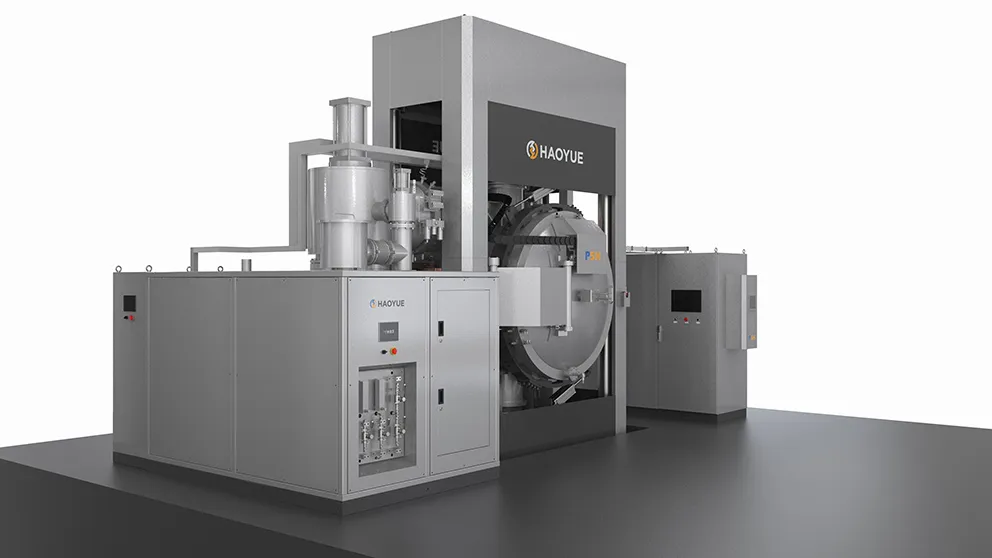

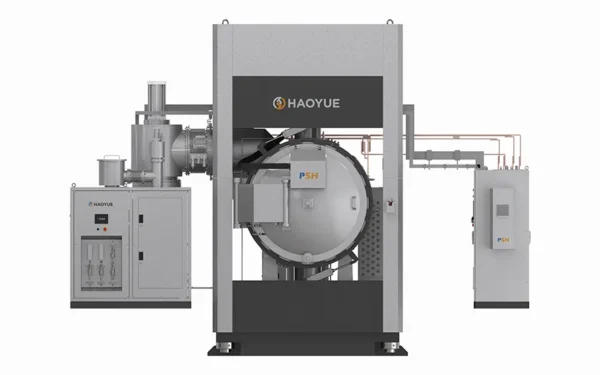

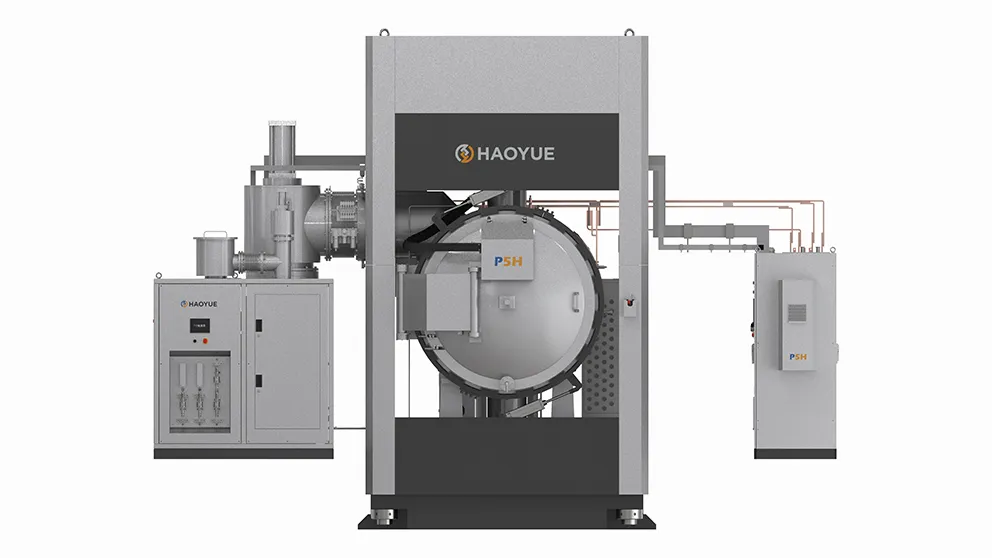

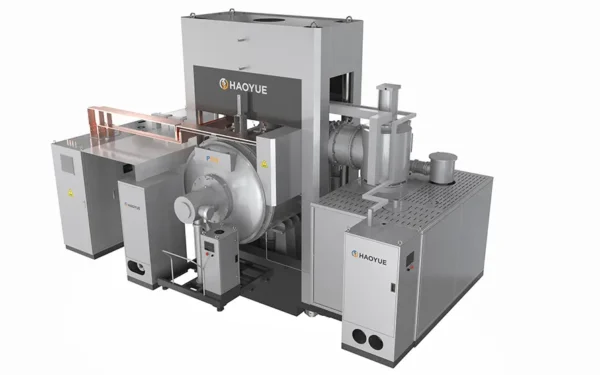

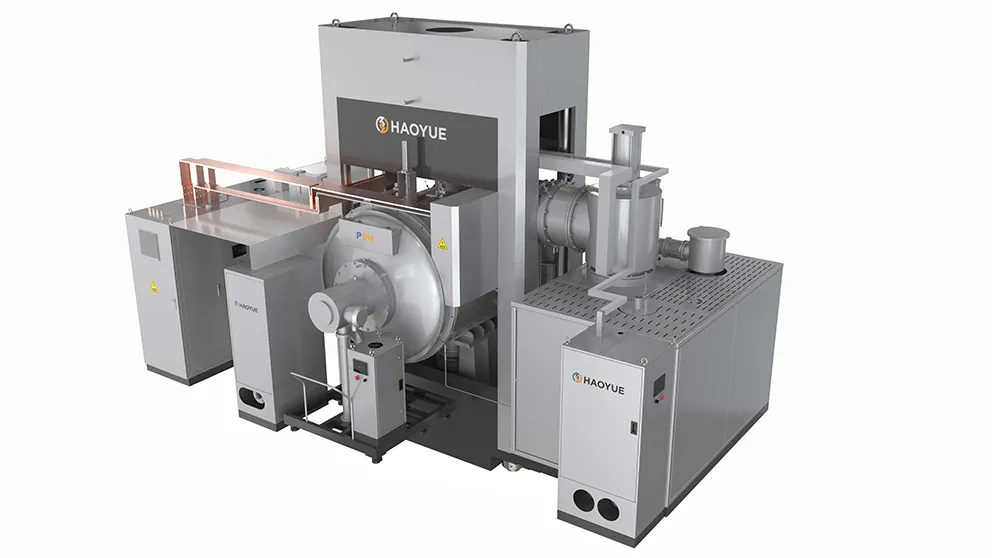

The P5H Vacuum Hot Pressing Furnace (Graphite) is a high-performance hot press sintering system designed for advanced materials requiring high temperature, high pressure, and precise control.
This system performs vacuum hot pressing using graphite heating and hydraulic pressure, enabling simultaneous sintering and forming of materials.
The system integrates:
- Graphite heating system (induction-assisted)
- Hydraulic pressure system
- Vacuum or controlled atmosphere
👉 Enabling:
- Rapid densification of materials
- Grain bonding and microstructure control
- Reduction of porosity and defects
Hot pressing under vacuum allows materials to densify into high-performance polycrystalline structures with improved density and mechanical properties
⚙️ Core Applications
This furnace is widely used in:
- Advanced ceramics (SiC, BN, B₄C)
- Cemented carbide materials
- Powder metallurgy
- Carbon and graphite materials
- Composite materials
👉 Typical applications:
- Structural ceramic components
- High-performance wear parts
- Functional materials and composites
🔬 Working Principle (Vacuum Hot Pressing)
The system combines temperature and uniaxial pressure under vacuum conditions:
- Powder is loaded into a graphite mold
- Vacuum or inert atmosphere is applied
- Heating system raises temperature
- Hydraulic pressure is applied from press head
- Material densifies and forms a solid structure
👉 Result:
- Reduced porosity
- Increased density
- Uniform microstructure
Hot pressing enables volume contraction and density increase through particle bonding and material transfer
⭐ Key Features & Advantages
✔ Vertical Structure Design (Core Advantage)
- Vertical upward opening structure
- High precision for mold loading and unloading
- Easy operation
✔ Fast Heating Performance
- Heating rate:
- 20°C/min (<1600°C)
- 10°C/min (>1600°C)
✔ Excellent Temperature Uniformity
- Average temperature uniformity: ±5°C
- Multi-point temperature measurement
✔ High Pressure Accuracy
- Hydraulic control system
- Pressure accuracy: ±3%
✔ Advanced Thermal Field Design
- Optimized thermal field simulation
- Modular heating and insulation design
- Stable temperature distribution
✔ Multi-Zone Temperature Control
- Multiple temperature measurement ports
- Accurate high-temperature monitoring
✔ High Degree of Automation
- Fully automated operation (except loading/unloading)
- PLC + HMI + PID control system
✔ Reliable Sealing Performance
- Corrugated pipe sealing for dynamic pressure heads
- Ensures vacuum integrity and no leakage
✔ High Safety Performance
- Integrated pressure sensing and control
- Stable and reliable system operation
📊 Technical Specifications (Strictly Based on Product Data)
Standard Configurations
| Parameter | P5 Standard | P5 Plus | P5 Pro | P5 Pro Max |
|---|---|---|---|---|
| Metal Indenter Diameter | 300 mm | 360 mm | 300 mm | 360 mm |
| Graphite Indenter Diameter | 300 mm | 360 mm | 300 mm | 360 mm |
| Max Product Diameter | ≤Φ300 mm | ≤Φ360 mm | ≤Φ300 mm | ≤Φ360 mm |
| Product Height | 10–100 mm | 10–100 mm | 10–100 mm | 10–100 mm |
📌 All specifications are directly aligned with official product data
🏭 Application Fields
This system is ideal for:
- Industrial production lines
- Advanced material manufacturing
- Research and pilot production environments
👉 Especially suitable for:
- Carbide materials
- Ceramic components
- Composite materials
- High-temperature functional materials
🚀 Why Choose P5H Vacuum Hot Press Furnace?
👉 Best for Industrial Hot Press Sintering
- Designed for stable and repeatable production
👉 Best for Advanced Materials
- Suitable for high-performance ceramics and carbides
👉 Best for Precision Processing
- High control over temperature and pressure
⚖️ Position in P Series Product Line
| Series | Position |
|---|---|
| P2 | Laboratory |
| P5H (This Product) | Pilot / Industrial |
| P7 | Large-scale Industrial |
| Continuous | Mass production |
👉 Recommendation:
- Research → P2
- Pilot / production → P5H
- Large components → P7
🧩 Customization Options
- Chamber size customization
- Heating system optimization
- Pressure system upgrade
- Automation integration
🎯 Why Choose Us?
- Professional vacuum hot pressing furnace manufacturer
- Complete P series product line
- Strong expertise in high-temperature sintering technology
- Reliable technical support and service
📩 Get a Quote
Looking for a reliable vacuum hot pressing furnace supplier?
Contact us today for customized solutions and quotation.
