I. Product introduction: JZ-BP box furnaces mainly provide high-temperature heat treatment environments for industry laboratories such as universities, research institutes, and factory enterprises, and are applied to new materials such as metal materials, ceramic materials, nanomaterials, and semiconductor materials. II. Product description: JZ-BP box furnace is mainly developed for daily laboratory applications, ceramic fiber furnace materials and stable temperature control system, with high temperature uniformity and temperature accuracy. The new ceramic fiber material is used as the furnace material, the superalloy heating element is used as the heating element, and the temperature controller adopts the microcomputer PID control module, which can achieve temperature control and constant temperature requirements. 3. JZ-BP box furnace product features: 1. The furnace material uses alumina ceramic fiber material, high temperature does not drop powder, heat capacity is small, energy saving is more than 50%. 2. The heating element adopts high temperature alloy wire, which can withstand large load, stable and long service life. 3. The high temperature furnace temperature rise speed is fast, rising from room temperature to 1000 degrees Celsius, generally takes 25-45 minutes. 4. High temperature control accuracy, small punching temperature, with temperature compensation and temperature correction function, accuracy is ± 1 ℃. 5. Adopt temperature control instrument, with program function, can freely set the temperature rise, cooling, insulation curve. 6. Integrated structure, can reduce the use space, appearance design, beautiful, generous 7, electronic components are selected Schneider or Zhengtai, with leakage protection function, reliable

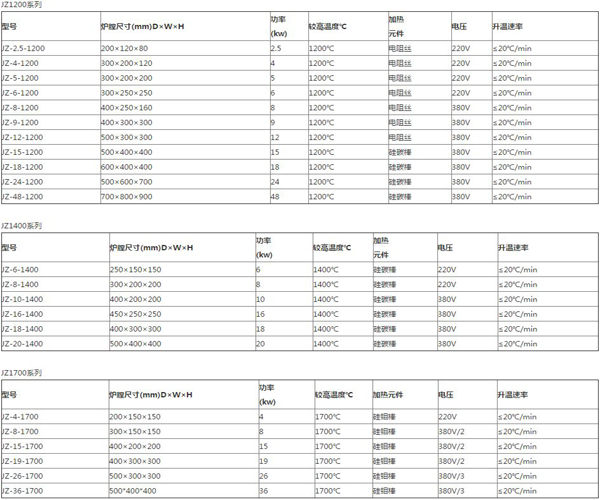

8. The machine will send an alarm signal to the over-temperature during the working process, and automatically complete the protection action 9. When the instrument program is set up, as long as the operation button is pressed, the next work will be automatically completed 10. An optional large-screen paperless recorder can be equipped to realize real-time recording of the heating curve, and a memory card can be used to analyze and print the experimental data 11. An optional air inlet can be installed to allow inert gases such as air to be purged and protected; an exhaust chimney can also be installed to connect the stainless steel bellows, so that the toxic and harmful gases volatile at high temperature in the furnace can be discharged to the specified location IV. Specification parameter selection:
