Compact Bell-Jar Furnace

Technical overview

Designed around the complete thermal process.

Compact Bell-Jar Furnace is a HuanYu lift furnaces system for ceramic sintering, glass melting, materials research, batch thermal processing. Published configuration references include Configuration specific and Air or controlled thermal processing. Final selection depends on the material, workload, process window and selected configuration.

Key technical facts

• +Temperature reference: Configuration specific
• +Environment reference: Air or controlled thermal processing
• +Overview of JZ.ZZL-800-2200 small bell hood furnace: JZ.ZZL series small bell hood furnace is the introduction of foreign technology, independently developed and produced, energy-saving, environmental protection, new electric furnace, with a reasonable structure, beautiful appearance, reasonable structure, simple and convenient operation. This equipment is widely used in universities, research institutes, industrial and mining enterprises to do powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals, metal sintering and metal heat treatment and other experiments and production of ideal equipment. It is a type of high-temperature furnace. JZ.ZZL-800-2200 small bell hood stove Features: 1. The shell is made of cold-rolled steel, machined by CNC machine tools, and processed by a luxurious and beautiful two-color epoxy powder electrostatic spraying process. It is resistant to high temperatures and corrosion. It uses heating elements and is equipped with an air-cooling system between double-layer furnace shells, which can quickly cool down. 2. The furnace has the advantages of balanced temperature field, low surface temperature of the furnace body, fast rise and fall temperature rate, energy saving, etc. 3. All furnaces are constructed of composite temperature fiber materials by numerical control process, with strong thermal shock resistance, good corrosion resistance, no collapse, no crystallization, no slag, no pollution, and long service life. 4. Fully automatic screw rod lifting, smooth without flutter, furnace opening down, low heat loss, high temperature state can open the furnace door for circulation operation 5. The control system adopts microcomputer artificial intelligence adjustment technology,

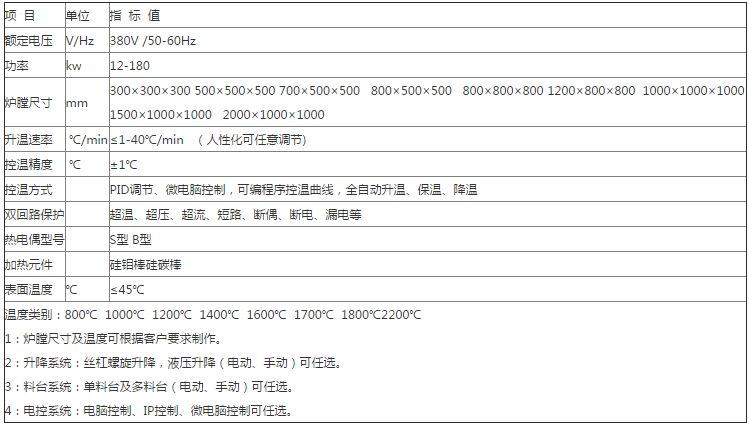

• +With PID adjustment, automatic control, self-tuning function, multi-stage programming, and can compile a variety of heating, insulation, cooling procedures, high temperature control accuracy; integrated module thyristor control, phase shift trigger, protection system: independent over-temperature protection, overvoltage, overcurrent, leakage, short circuit protection. The degree of automation is high, and the indicators have reached the level. JZ.ZZL-800-2200 small bell hood furnace Specifications and parameters are brief:
