Muffle Furnace

Technical overview

Designed around the complete thermal process.

Muffle Furnace is a HuanYu muffle furnaces system for ceramic firing, calcination, glass annealing, laboratory heat treatment. Published configuration references include Configuration specific and Vacuum-capable. Final selection depends on the material, workload, process window and selected configuration.

Key technical facts

• +Temperature reference: Configuration specific
• +Environment reference: Vacuum-capable

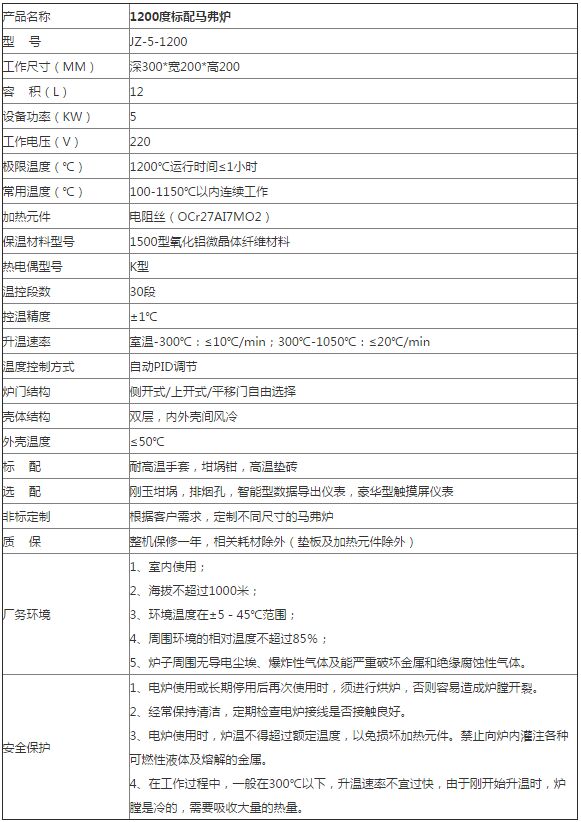

• +Muffle furnace product introduction: This series of muffle furnace is suitable for sintering of electronic ceramics and high-temperature structural ceramics, annealing and microcrystallization of glass, annealing of crystals, preparation of ceramic glaze, powder metallurgy, sintering of nanomaterials, quenching of metal parts and heat treatment that requires rapid heating process requirements. It is an ideal experimental and production equipment for scientific research units, colleges and universities, and industrial and mining enterprises. This series of muffle furnaces is a new high-performance and energy-saving electric furnace developed by Shanghai Jingyao with good technology. The products have a good and reasonable structure. The general-purpose ceramic fiberboard is used to build the furnace through the process, and the multi-segment intelligent program controller is used to automatically control the temperature. The comprehensive performance indicators are high and at a high level. Hearth working area size (unit: mm): depth * width * height is 300 * 200 * 200 (12L) respectively. It uses 1430 type alumina fiber material, uses high-quality electric heating wire for heating, and has complete specifications, which can meet most of the use needs and is reliable. At the same time, non-standard customization can also be achieved, which is satisfied with different process experiments and special manufacturing. 1. The furnace body adopts a double-layer furnace shell structure, and a fan is installed between the double-layer furnace shells, which can quickly raise and lower the temperature, and the surface temperature of the furnace shell is low. 2. The furnace material is made of aluminum oxide polycrystalline fiber vacuum adsorption, which saves energy by 50%, and the heating element uses good resistance wire. 3. The electric furnace temperature control system adopts artificial intelligence regulation technology,
• +It has PID adjustment, fuzzy control, self-tuning ability, and can program various heating programs. The temperature display accuracy of the control system is 1 ℃, the temperature field stability is ± 5 ℃, and the heating rate is 1 ~ 20 ℃. It can be set arbitrarily.
