Name: Split Vertical Tube Furnace
Brand: HuanYu
SKU: VTL1200-I

Direct definition

Split Vertical Tube Furnace is configured around a defined material process window.

A Split Vertical Tube Furnace for atmosphere-controlled heating, synthesis and heat treatment in a tube process zone.

Model fact

VTL1200-I is documented with process type: Tube furnace; process environment: Air / vacuum / process gas.

Technical overview

Designed around the complete vacuum and thermal process.

Our Split Vertical Tube Furnace centers on the process tube, heating zone and atmosphere control required for repeatable thermal processing.

01

Materials research

02

Heat treatment

03

Powder synthesis

04

Atmosphere-controlled processing

Key technical facts

Process tube and atmosphere control are central to the design
Zone count and tube size determine the usable process window
Useful for research and scale-up work

Technical parameters

Published configuration data by model.

ModelVTL1200-I

Process typeTube furnace

Process environmentAir / vacuum / process gas

Typical applicationsMaterials research, Heat treatment, Powder synthesis

Detailed description

How the furnace is organized around the process.

Tube Furnaces architecture

Our Split Vertical Tube Furnace centers on the process tube, heating zone and atmosphere control required for repeatable thermal processing.

We keep the layout compact, serviceable and process-focused so each project can be configured around the material, temperature window and utility package that matter most.

Materials research
Heat treatment
Powder synthesis
Atmosphere-controlled processing

Reference imagery

We keep the visual reference material in the gallery so buyers can review the furnace body, support hardware and process layout before requesting a quotation.

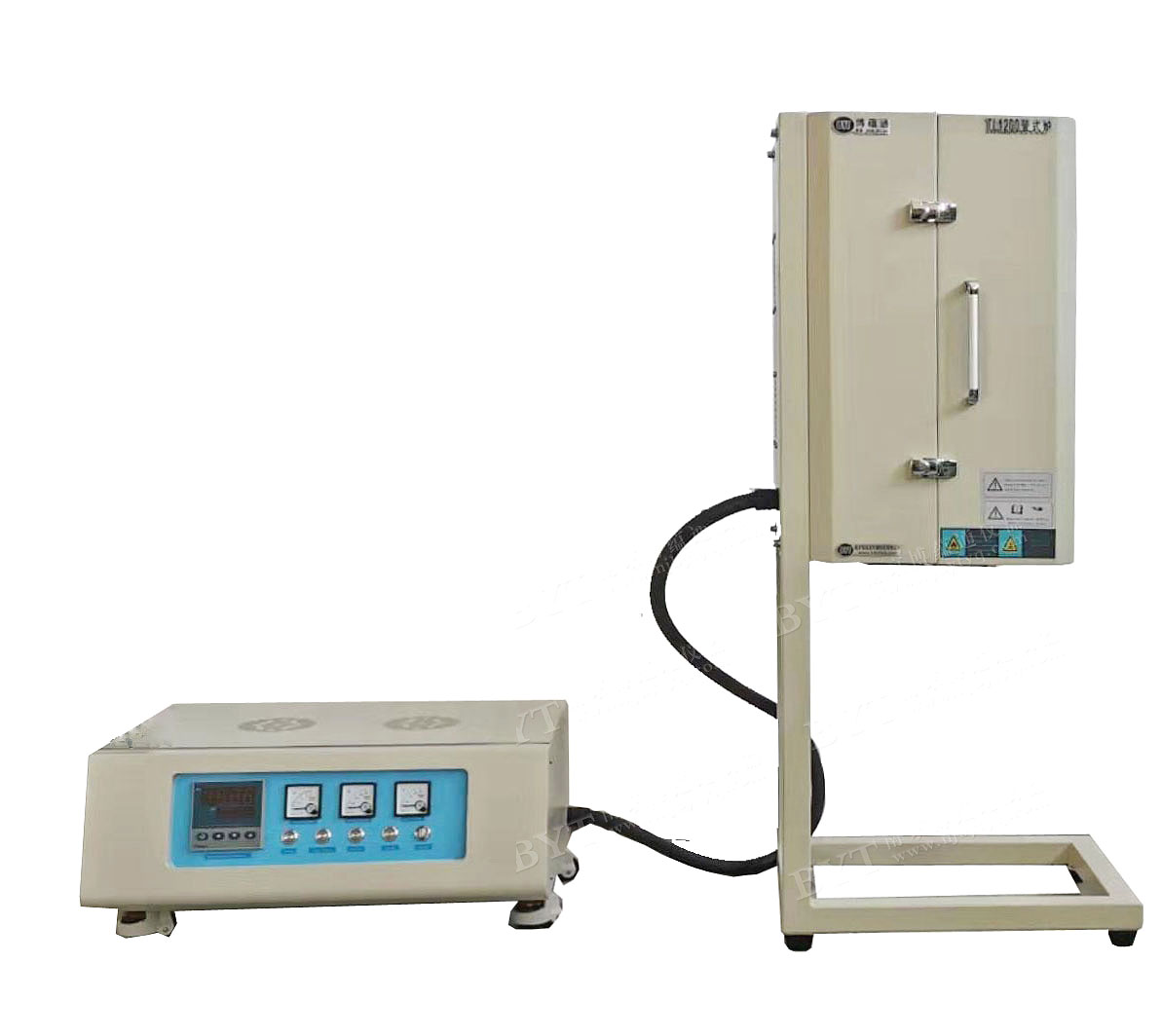

Split Vertical Tube Furnace product image 1 — Front view

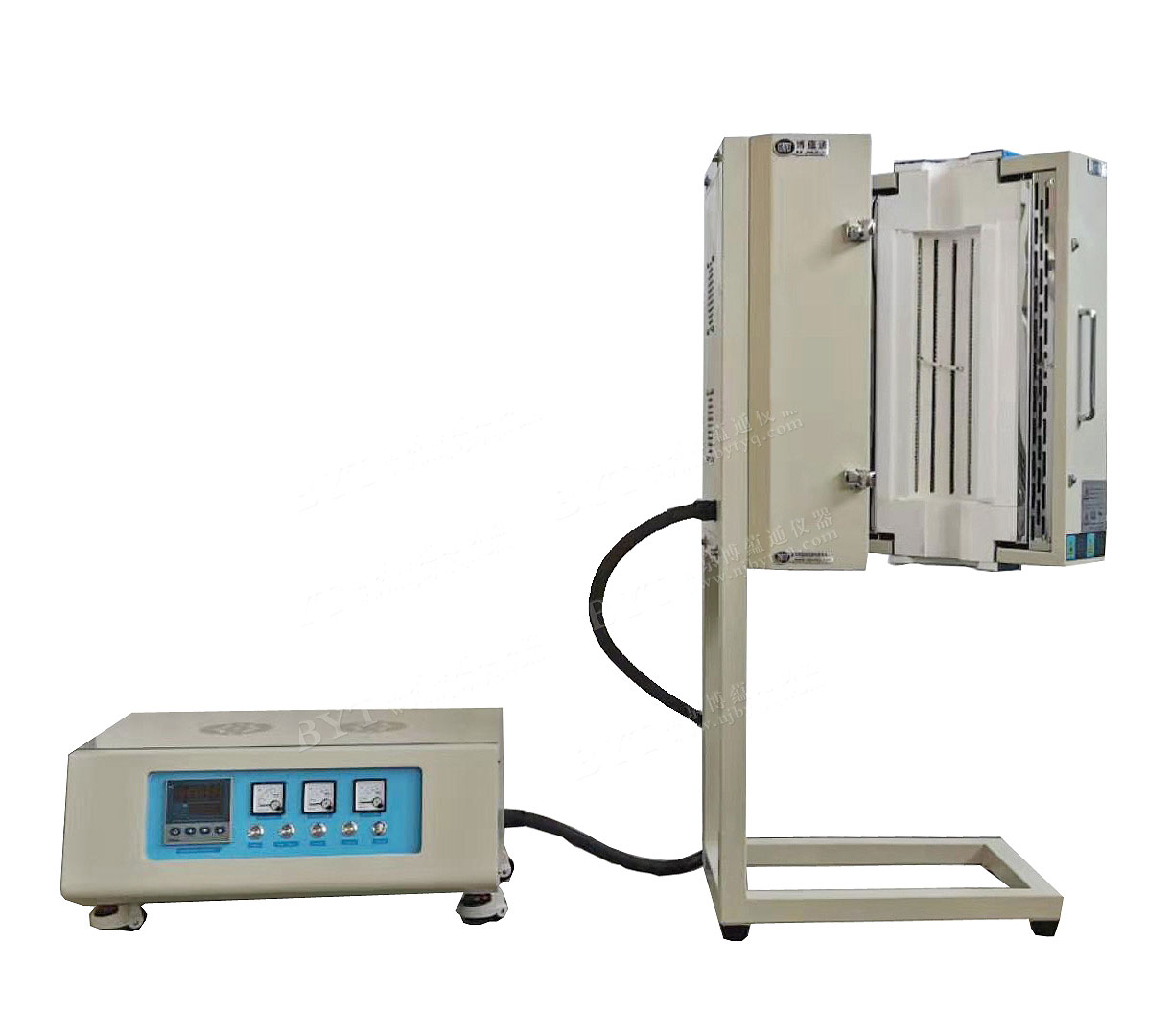

Split Vertical Tube Furnace product image 2 — Detail view

Split Vertical Tube Furnace product image 3 — System view

Split Vertical Tube Furnace product image 4 — System view

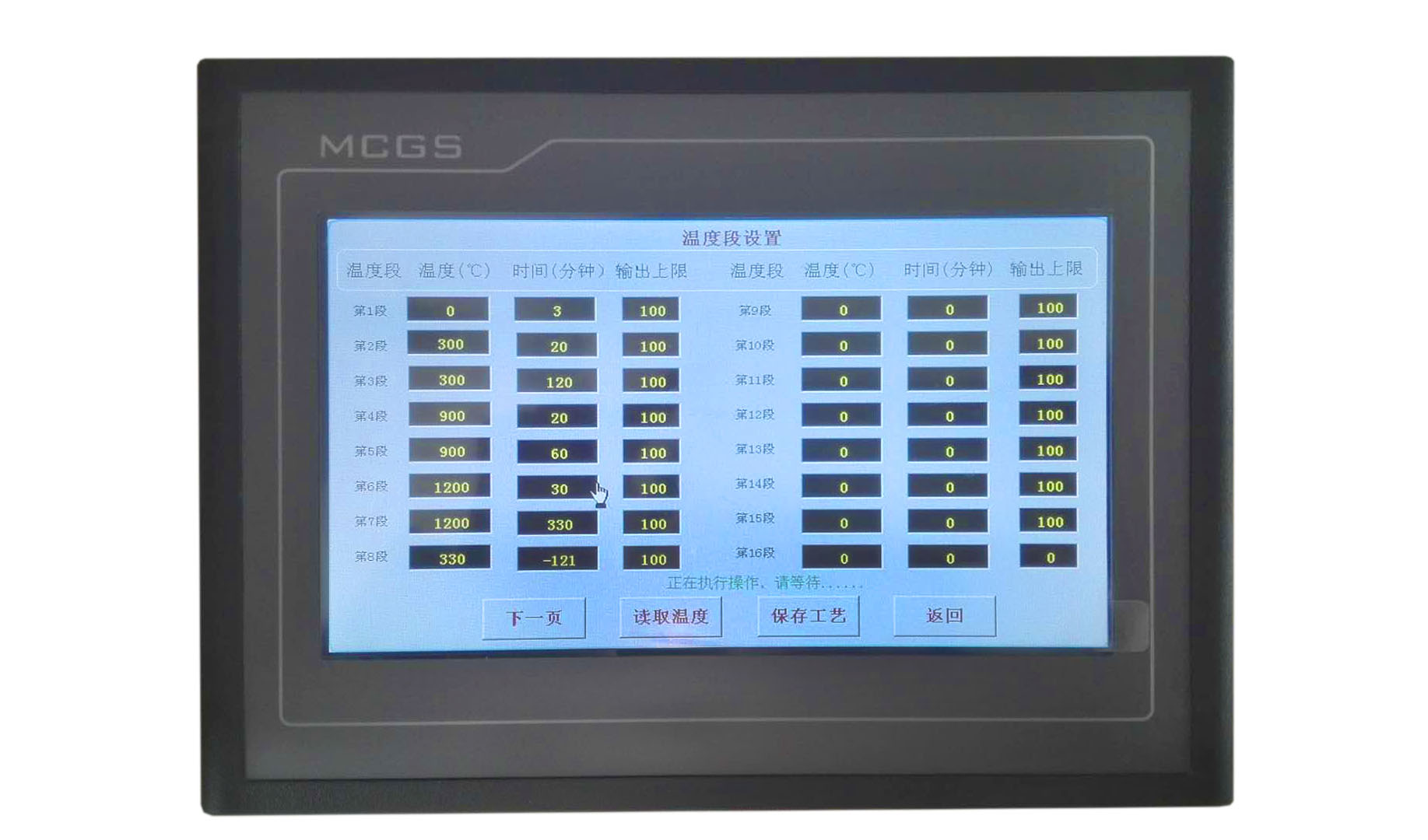

Split Vertical Tube Furnace product image 5 — System view

Split Vertical Tube Furnace product image 6 — System view

Standard configuration

Included equipment scope.

Tube furnace body1 set

Process tube1 set

Heating zone1 set

Control cabinet1 set

Operating manual1 copy

Optional configuration

Utilities and monitoring options.

Vacuum package1 set

Rotation drive or multi-zone module1 set

Product FAQ

Questions to answer before requesting a configuration.

What is the Split Vertical Tube Furnace used for?

Split Vertical Tube Furnace is intended for materials research, heat treatment, powder synthesis, atmosphere-controlled processing. The final process fit depends on the material, cycle and required acceptance criteria.

What information should I provide for a technical recommendation?

Provide the material, part or sample dimensions, target temperature, atmosphere or vacuum level, batch size, process time, cooling preference and any tooling or automation requirements.

Can the equipment configuration be customized?

The configuration can be reviewed around chamber size, heating system, atmosphere, vacuum train, controls, cooling, tooling and safety interlocks before a technical proposal is prepared.
