In one sentence

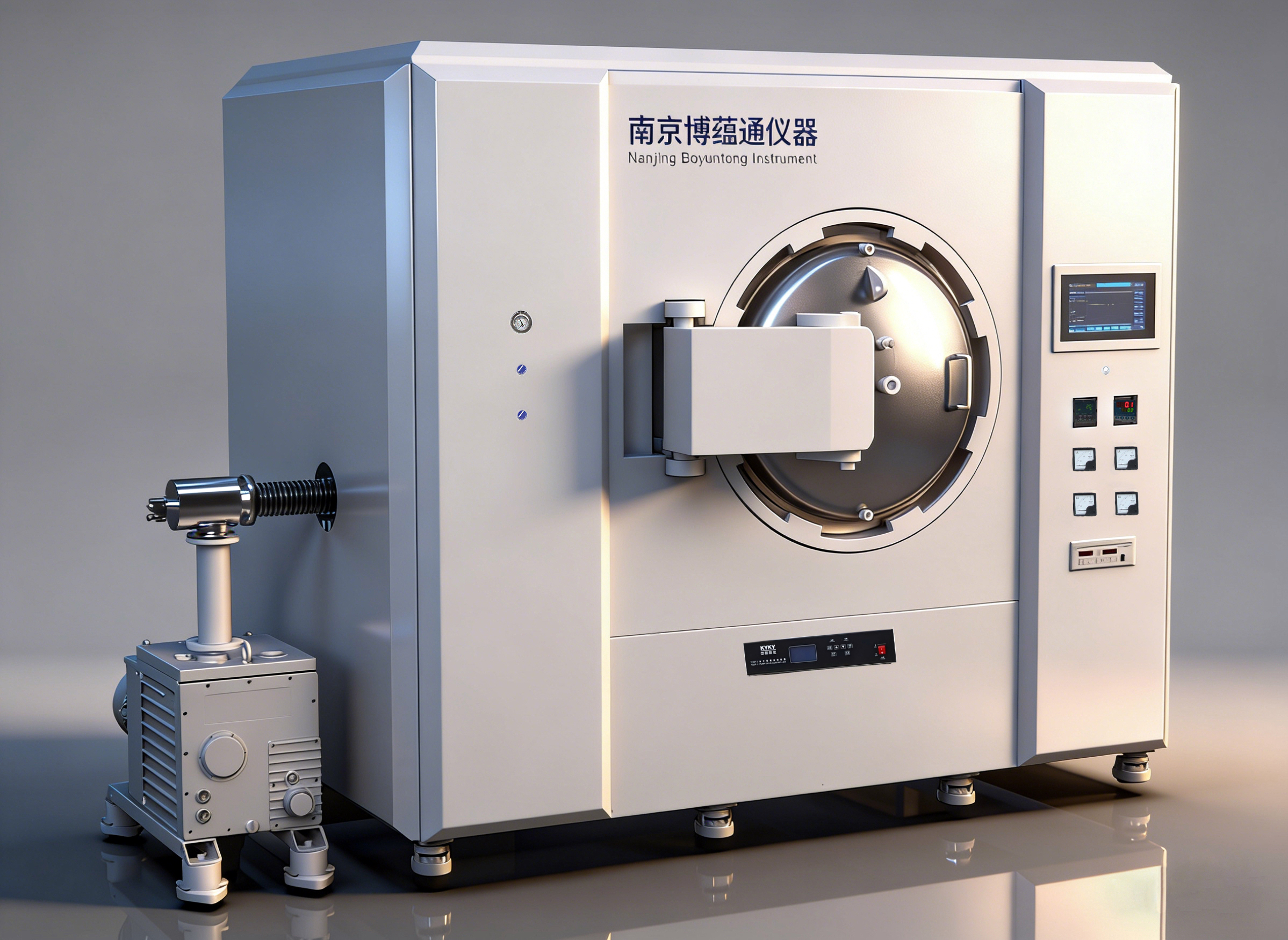

A high-vacuum system is a custom chamber platform that combines pumping, sealing, instrumentation and thermal control to reach a declared vacuum target and support a specific process route.
What a high-vacuum system must control
A high-vacuum system should be specified around the process route, chamber volume, target base pressure, pressure stability and the pump train needed to reach that level in a repeatable time. The system is not just a sealed box; it is a controlled environment where leak behavior, outgassing, loading method and thermal response all affect the process result.
That is why the first inquiry should name the job the chamber must do, not only the vacuum number. If the temperature window, gas backfill, feedthrough count or fixture layout is missing, the configuration can miss the real operating envelope.
How to turn a vacuum project into an RFQ
A useful RFQ should include the material system, chamber size, target vacuum level, pump sequence, temperature range, gas backfill or protected-atmosphere requirement, and any electrical, mechanical or diagnostic feedthroughs that must be included. If the project needs heating, repeated cycles, transfer steps or data logging, those details should be written into the first request.
The acceptance result should also be stated clearly: base pressure, pump-down time, pressure stability, temperature uniformity, repeatability or another defined research outcome. Those criteria keep the design tied to the actual process rather than a generic vacuum shell.
Key facts
- ✓High-vacuum systems are defined by chamber volume, leak rate and pumping train.
- ✓Base pressure and pump-down time should be quoted with the thermal window.
- ✓Feedthroughs, fixtures and instrumentation can change the hardware scope.
- ✓Protected-atmosphere backfill should be discussed before quotation.
- ✓Acceptance criteria should name the vacuum target and the process result.
How to approach the process
- 01
Define the process route, chamber size and target vacuum level.
- 02
Set the pump train, gas backfill and temperature window.
- 03
Specify feedthroughs, fixtures and logging requirements.
- 04
Confirm loading, safety and utility constraints.
- 05
Request a vacuum configuration matched to the validation plan.
What to specify before comparing equipment
State base pressure, pressure stability and pump-down time because they define the usable process envelope.
Explain chamber volume, seal strategy and pumping sequence so the quote matches the real hardware scope.
Describe temperature range, gas backfill and any protected-atmosphere requirement together.
List electrical, mechanical, gas or diagnostic access because they often change the design.
Say which traces or test results will prove the system reached the requested process condition.
Useful inputs for a technical inquiry
A clear first inquiry does not require a final specification. It should establish the material, process target and operating constraints so the equipment scope can be reviewed against the application.
- ✓Process route, chamber size and target vacuum level
- ✓Pump train, gas backfill and temperature window
- ✓Feedthrough, fixture and diagnostic requirements
- ✓Loading, safety and utility constraints
- ✓Base pressure, pump-down time and acceptance criteria
Process comparison
A basic chamber is enough when the vacuum target and thermal scope are simple.
A controlled high-vacuum system is needed when base pressure, pump-down time and logging matter.
Chamber size and general vacuum capability.
Chamber volume, pumping train, feedthroughs, temperature and acceptance data.
The system reaches a usable vacuum state.
The system reaches the declared process condition and keeps it stable.
Frequently asked questions
What should I define first for a high-vacuum system?
Start with the process route, chamber size, target vacuum level and the time it should take to reach that condition.
Why do feedthroughs matter?
Because electrical, gas and diagnostic access often change the chamber design and the final quotation scope.
Can a high-vacuum system run with backfill gas?
Yes, but the backfill gas, pressure range and thermal window should be stated with the vacuum target from the start.
