🧩 Product Overview

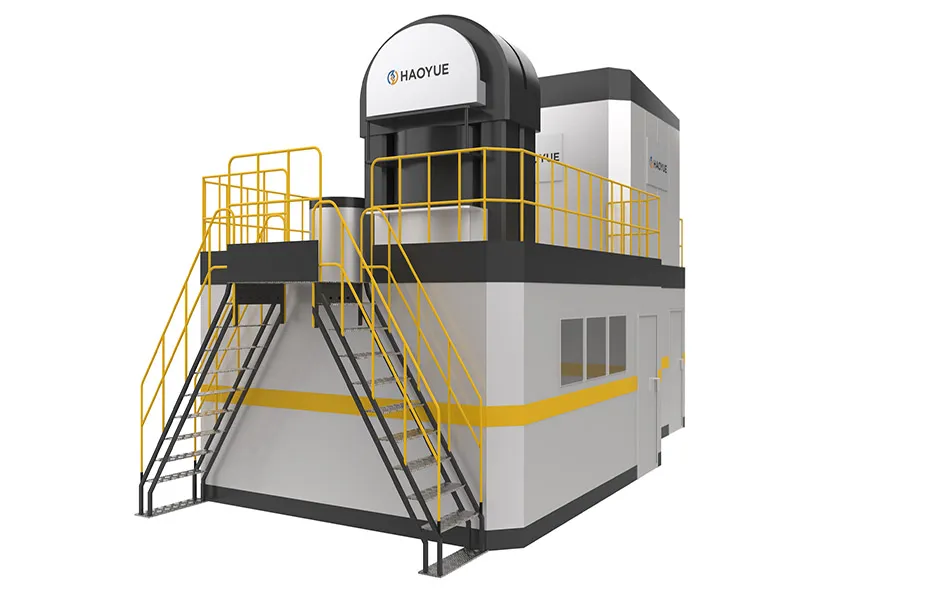

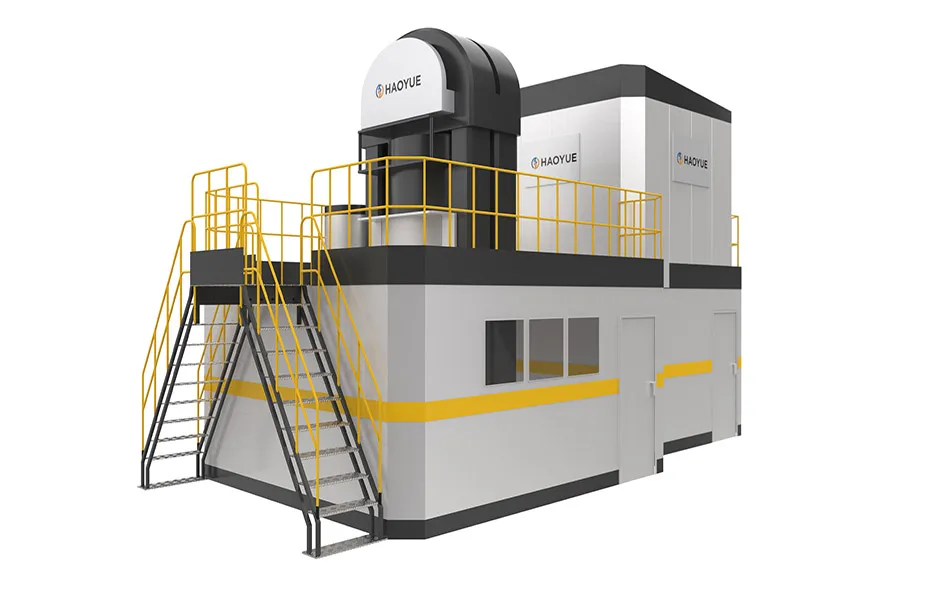

The I5 Hot Isostatic Press (HIP) is an industrial-scale high-capacity system designed for large components and high-throughput production of advanced materials.
The system utilizes:
- High-pressure inert gas (argon)
- High-temperature heating system
- Fully enclosed isostatic pressure vessel
👉 Enabling:
- Elimination of internal porosity
- Full densification of materials
- Superior mechanical and structural performance
Hot isostatic pressing applies uniform pressure in all directions, ensuring isotropic properties and high reliability of critical components
⚙️ Core Applications
This industrial HIP system is widely used in:
- Aerospace components (turbine blades, engine parts)
- Additive manufacturing (3D printed metal parts)
- Medical implants and high-precision components
- Automotive high-performance parts
- Energy, oil & gas equipment
👉 Suitable materials include:
- Titanium alloys
- Nickel-based superalloys
- Stainless steel
- Advanced ceramics and composites
🔬 Working Principle (HIP Process)
The HIP process combines high temperature and isostatic gas pressure:
- Components are loaded into a sealed pressure vessel
- The chamber is filled with inert gas (typically argon)
- Temperature is increased to the required level
- Pressure is applied uniformly in all directions
- Material densification occurs
👉 Result:
- Internal voids are eliminated
- Density approaches theoretical levels
- Mechanical properties are significantly improved
HIP is widely used to eliminate porosity and enhance material strength and durability
⭐ Key Features & Advantages
✔ Industrial-Scale Capacity (Core Advantage)
- Designed for large-size components and heavy workloads
- Suitable for full industrial production
✔ High Pressure Capability
- Maximum pressure: 100 / 150 / 200 MPa
- Pressure range: 50–310 MPa
✔ High Temperature Performance
- Maximum temperature: 1400°C / 2000°C
- Heating elements:
- Graphite (high temperature applications)
- Molybdenum (clean processing environment)
✔ Large Working Zone
- Loading size: Φ500 × 1000 mm
👉 Suitable for large and heavy industrial components
✔ High Power Output
- Heating power: 300 kW
✔ Stable Vacuum & Gas Environment
- Vacuum level: 10 Pa
- Inert gas ensures oxidation-free processing
✔ Excellent Material Quality
- Near full density
- Improved fatigue resistance
- Enhanced structural integrity
✔ High Safety Design
- High-strength pressure vessel
- Multi-layer safety protection system
🧠 Intelligent Control System
- PLC-based fully automatic control
- Real-time monitoring of:
- Temperature
- Pressure
- Gas flow
- Programmable process cycles
- Data recording and traceability
👉 Ensures stable and repeatable industrial operation
📊 Technical Specifications (Strictly Based on Product Data)
| Parameter | Value |
|---|---|
| Max Temperature | 1400°C / 2000°C |
| Max Pressure | 100 / 150 / 200 MPa |
| Pressure Range | 50–310 MPa |
| Loading Size | Φ500 × 1000 mm |
| Heating Power | 300 kW |
| Vacuum Degree | 10 Pa |
| Heating Material | Graphite / Molybdenum |
📌 Example models:
- I5CC20: 2000°C (graphite heating)
- I5MO14: 1400°C (molybdenum heating)
🏭 Application Fields
This system is ideal for:
- Industrial production lines
- Large-scale material manufacturing
- Additive manufacturing post-processing
- High-performance structural components
👉 Especially suitable for:
- Large metal parts
- Aerospace-grade components
- High-reliability engineering materials
🚀 Why Choose I5 Hot Isostatic Press?
👉 Best for Industrial Production
- Designed for high-volume and large-size processing
👉 Best for Large Components
- Significantly larger working zone than I1 and I3
👉 Best for High-Performance Materials
- Maximizes strength, density, and durability
⚖️ I1 vs I3 vs I5 HIP System
| Feature | I1 HIP | I3 HIP | I5 HIP |
|---|---|---|---|
| Scale | Laboratory | Pilot | Industrial |
| Capacity | Small | Medium–Large | Large |
| Loading Size | Φ100×150 mm | Φ350×700 mm | Φ500×1000 mm |
| Power | 50 kW | 200 kW | 300 kW |
| Application | Research | Pilot production | Mass production |
👉 Recommendation:
- Lab testing → I1 HIP
- Pilot production → I3 HIP
- Industrial production → I5 HIP
🧩 Customization & Turn-Key Solutions
We provide complete HIP solutions including:
- System design and customization
- Process optimization
- Installation & commissioning
- Technical training
👉 Delivering complete industrial densification solutions
🎯 Why Choose Us?
- Professional HIP furnace manufacturer
- Full HIP product range (I1–I5)
- Strong expertise in high-pressure systems
- Reliable technical and after-sales support
📩 Get a Quote
Looking for a reliable industrial hot isostatic press supplier?
Contact us today for customized solutions and quotation.
