🧩 Product Overview

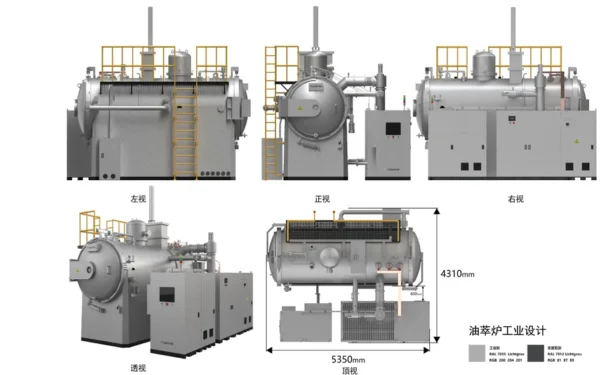

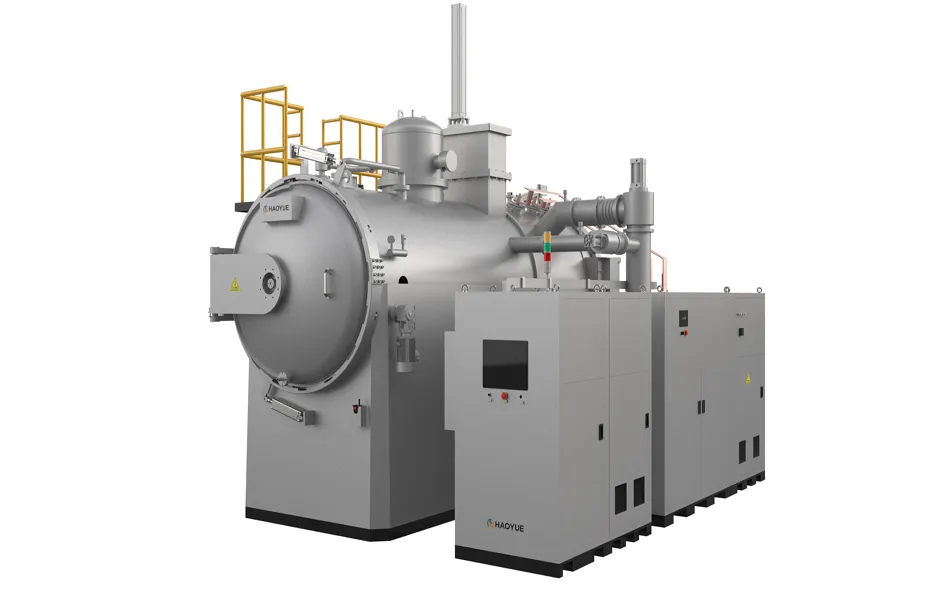

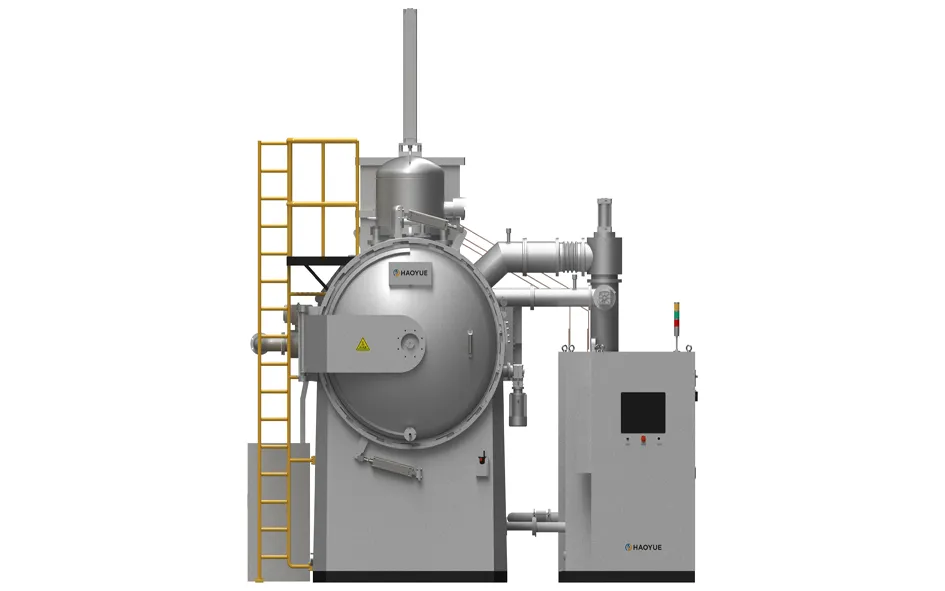

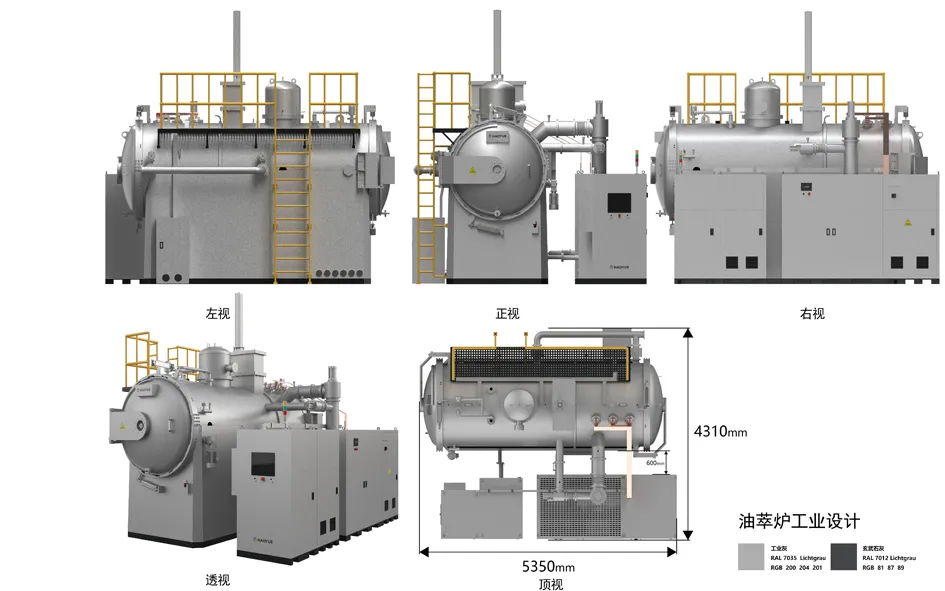

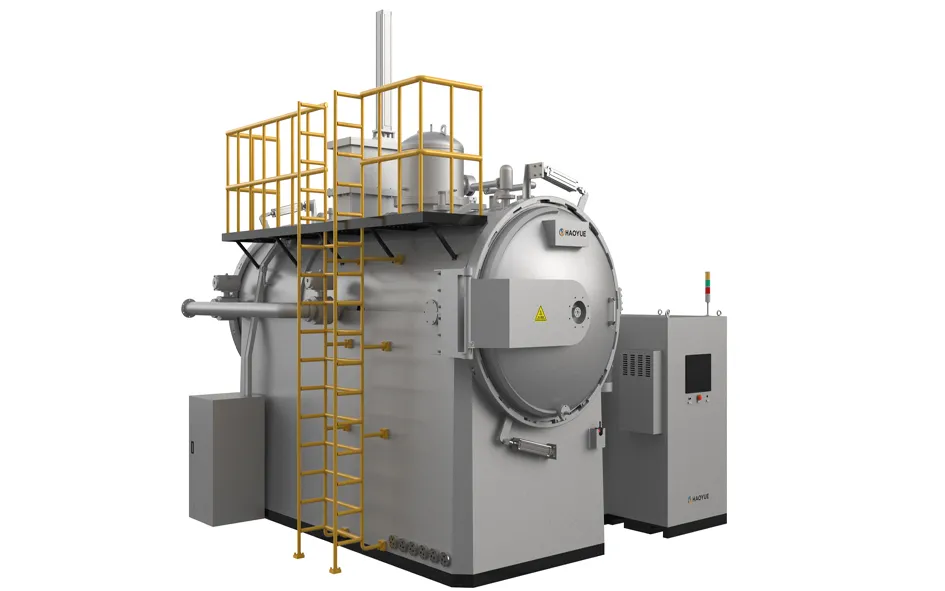

The Low Pressure Vacuum Carburizing Oil Quenching Furnace is an advanced vacuum heat treatment system that integrates carburizing and oil quenching processes in a single unit.
This system enables:
- Low pressure vacuum carburizing (LPC)
- High-speed oil quenching
- Fully automated heat treatment cycles
👉 Designed for high-performance steel components requiring:
- High surface hardness
- Excellent wear resistance
- Minimal distortion
Low-pressure carburizing ensures precise carbon control, uniform case depth, and improved fatigue life.
⚙️ Core Applications
This furnace is widely used in:
- Automotive gear and transmission components
- Bearings and shafts
- Tool steels and die steels
- Aerospace structural parts
Suitable materials include:
- Alloy structural steel
- Bearing steel
- Spring steel
- High-speed steel
- Stainless steel
👉 Especially effective for:
- Complex geometries (blind holes, narrow slots)
🔬 Working Principle (LPC + Oil Quenching Process)
The system combines low-pressure carburizing and oil quenching in a controlled vacuum environment:
- Evacuate chamber to high vacuum
- Introduce hydrocarbon gas (acetylene/propane)
- Perform carburizing through gas diffusion
- Transfer workpiece to oil quenching chamber
- Rapid cooling in quenching oil
👉 Result:
- Uniform carburized layer
- No oxidation or decarburization
- High hardness with strong core toughness
Low-pressure carburizing operates under low-pressure hydrocarbon decomposition, ensuring excellent reproducibility and process control.
⭐ Key Features & Advantages
✔ Integrated Carburizing + Quenching System
- Seamless switching between processes
- Higher equipment utilization
- Reduced handling time
✔ Superior Surface Quality
- No oxidation or soot formation
- No grain boundary oxidation
- Bright and clean workpiece surface
✔ High Hardness & Fatigue Resistance
- Uniform carburized case depth
- Strong wear resistance
- Improved component lifespan
✔ Excellent Cooling Performance (Oil Quenching)
- Faster cooling than gas quenching
- Reduced deformation
- Improved microstructure
✔ High Process Efficiency
- Higher carburizing temperature (up to ~1050°C)
- Shorter process cycle
- Increased productivity
✔ Environmental & Safety Benefits
- No open flame
- No CO₂ emissions
- Clean and safe working environment
🧠 Intelligent Control System
- PLC + HMI fully automated system
- Real-time monitoring of:
- Temperature
- Vacuum level
- Gas flow
- Pressure
- Process recipe storage & repeatability
- Remote diagnostics
👉 Ensures stable and repeatable production
📊 Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Max Temperature | ~1300°C |
| Carburizing Temperature | 750–1050°C |
| Vacuum Level | ≤ 10⁻¹ Pa |
| Temperature Uniformity | ±5°C |
| Oil Tank Volume | 2000–13000 L |
| Cooling Method | Oil quenching |
| Control System | PLC + Touch Screen |
🏭 Application Advantages
👉 For Complex Parts
- Uniform carburizing even in holes and grooves
- Better than traditional gas carburizing
👉 For High-End Manufacturing
- Automotive gears
- Aerospace components
- Precision mechanical parts
👉 For Mass Production
- High repeatability
- Stable process control
- Reduced post-processing
⚖️ Vacuum Carburizing vs Traditional Carburizing
| Feature | Vacuum Carburizing | Gas Carburizing |
|---|---|---|
| Surface Quality | Excellent (no oxidation) | Oxidation possible |
| Uniformity | High | Medium |
| Distortion | Low | Higher |
| Efficiency | High | Lower |
| Environmental Impact | Clean | CO₂ emissions |
👉 Conclusion:
Vacuum carburizing is the preferred solution for high-end precision parts
🧩 Customization & Turn-Key Solutions
We provide complete solutions including:
- Furnace system design
- Carburizing process optimization
- Automation integration
- Installation & commissioning
- Technical training
👉 Delivering complete heat treatment production solutions
🎯 Why Choose Us?
- Professional vacuum furnace manufacturer
- Extensive experience in carburizing technology
- Exported to Middle East, Europe, and Asia
- Reliable after-sales and technical support
📩 Get a Quote
Looking for a reliable low pressure vacuum carburizing furnace supplier?
Contact us today for customized solutions and quotation.
