🧩 Product Overview

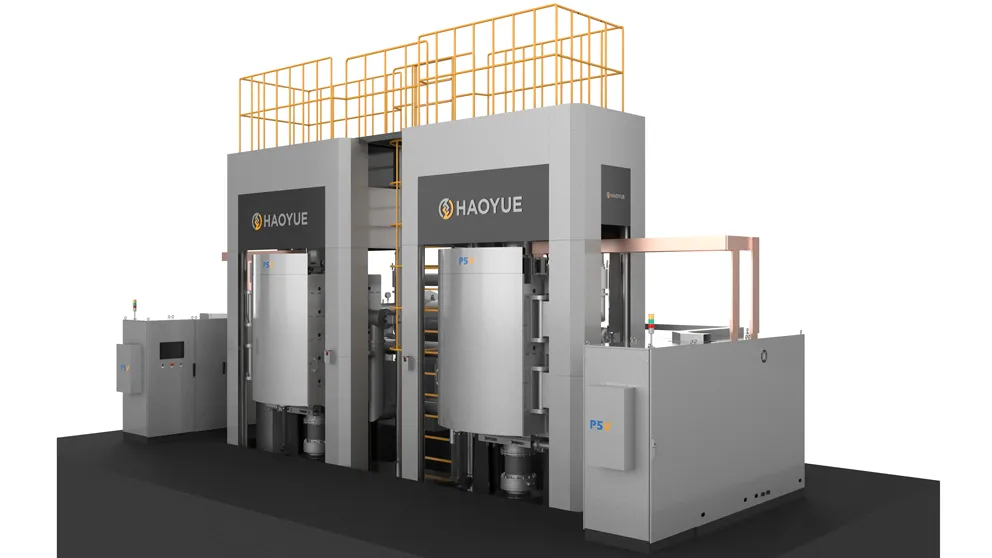

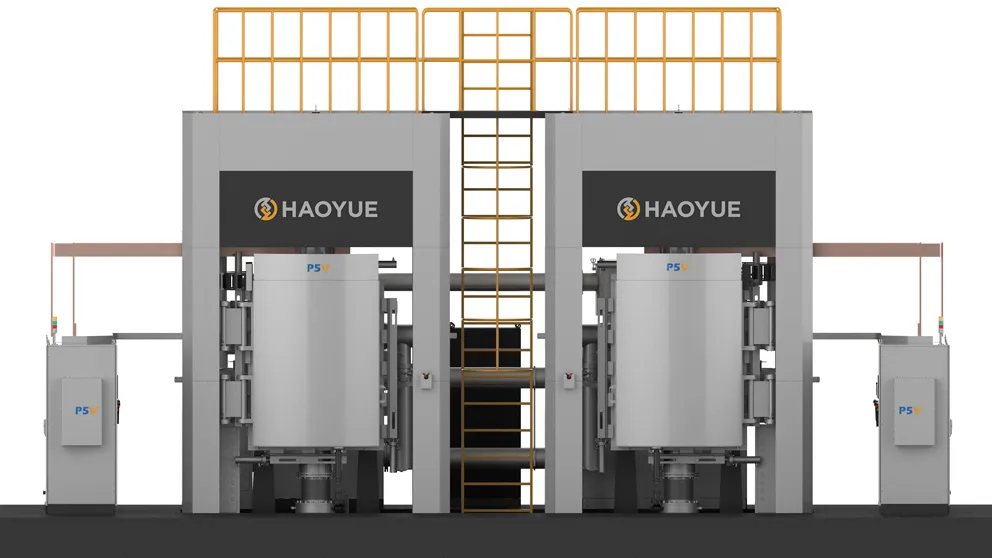

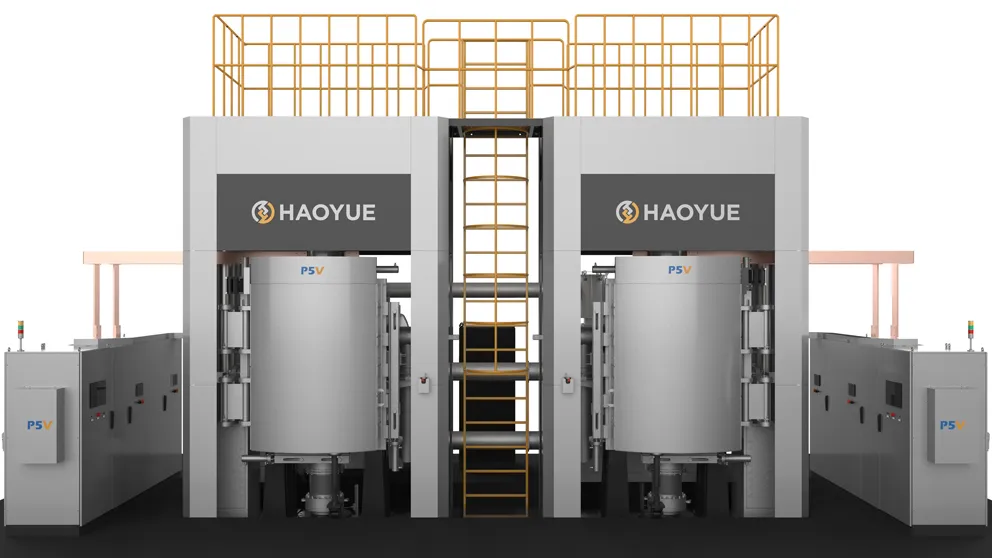

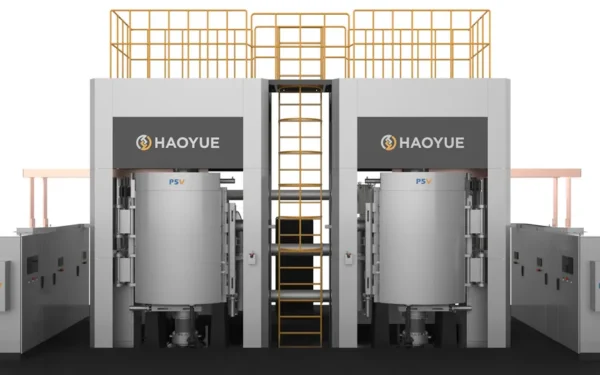

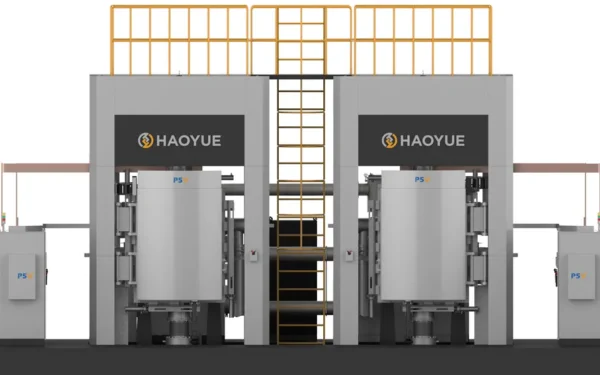

The P5V Two Chambers Vacuum Hot Pressing Furnace (Graphite) is an advanced dual-chamber hot press sintering system designed to improve production efficiency and process flexibility for advanced materials.
Compared with single-chamber systems, this furnace features:
- Two independent chambers
- Parallel processing capability
- Higher production efficiency
The system integrates:
- Graphite heating system (induction-based)
- Hydraulic pressure system
- Vacuum or controlled atmosphere
👉 Enabling:
- Continuous or semi-continuous operation
- Faster production cycles
- Stable and repeatable material processing
Vacuum hot pressing enables particle bonding, grain growth, and pore reduction under high temperature and pressure
⚙️ Core Applications
This dual-chamber hot press furnace is widely used in:
- Advanced ceramics (SiC, BN, B₄C)
- Cemented carbide materials
- Powder metallurgy
- Carbon and graphite materials
- Composite materials
👉 Typical applications include:
- Ceramic armor
- Brake discs
- Structural components
- High-performance composites
🔬 Working Principle (Dual-Chamber Hot Pressing)
The system operates using vacuum hot pressing with dual-chamber configuration:
- Powder is loaded into graphite molds
- One chamber performs heating and pressing
- The second chamber prepares the next cycle
- Chambers operate alternately or simultaneously
- Materials are densified under temperature and pressure
👉 Result:
- Reduced idle time
- Increased throughput
- Stable thermal process
⭐ Key Features & Advantages
✔ Dual-Chamber Design (Core Advantage)
- Two independent working chambers
- Parallel or alternating operation
👉 Significantly improves production efficiency
✔ Excellent Temperature Uniformity
- Average temperature uniformity: ±5°C
- Multi-point measurement system
✔ Fast Heating Performance
- Heating rate:
- 20°C/min (<1600°C)
- 10°C/min (>1600°C)
✔ High Pressure Capability
- Pressure up to:
- ≤3000 kN (P5 series)
- ≤6000 kN (P7 series)
✔ High Pressure Accuracy
- Hydraulic control system
- Pressure accuracy: ±3%
✔ High Degree of Automation
- Fully automated process (except loading/unloading)
- PLC + HMI + PID control
✔ Reliable Sealing Performance
- Corrugated pipe sealing for dynamic pressure heads
- Ensures no air leakage
✔ High Safety Performance
- Integrated pressure sensing and control
- Stable and safe operation
📊 Technical Specifications (Strictly Based on Product Data)

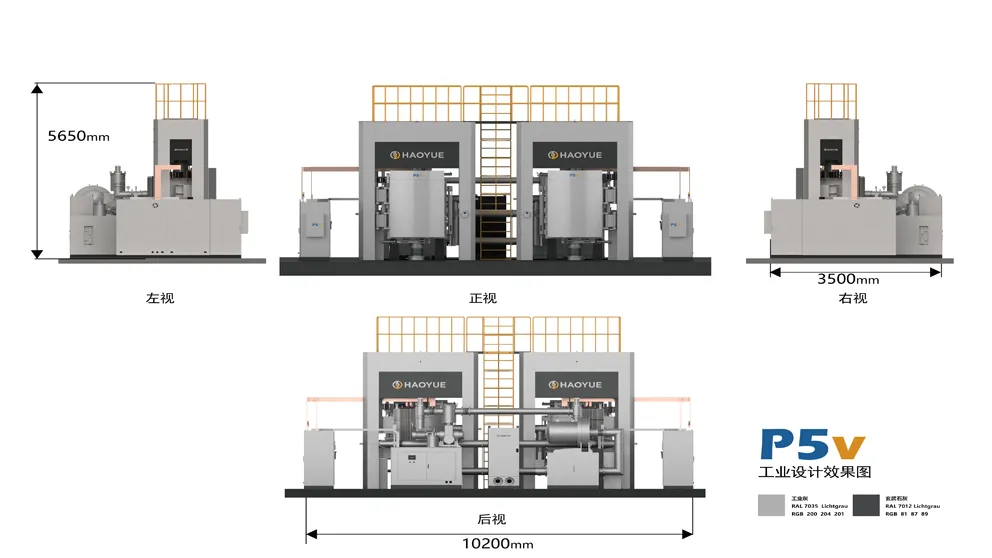

Typical Models
| Model | Chamber Size | Sample Diameter | Pressure | Stroke | Vacuum | Max Temperature | Mold Size |
|---|---|---|---|---|---|---|---|
| P5VGR22 | Φ500×500 mm | ≤300 mm | ≤3000 kN | 400 mm | ≤5 Pa | 2200°C | ≤500 mm |
| P7VGR22 | Φ700×900 mm | ≤420 mm | ≤6000 kN | 400 mm | ≤5 Pa | 2200°C | ≤700 mm |
📌 All specifications are strictly aligned with official product data
🏭 Application Fields
This system is ideal for:
- Industrial production lines
- High-efficiency material manufacturing
- Advanced ceramics and carbide production
👉 Especially suitable for:
- Medium to large components
- Repetitive batch production
- High-throughput manufacturing
🚀 Why Choose P5V Two Chambers Furnace?
👉 Best for Production Efficiency
- Dual chambers reduce downtime between cycles
👉 Best for Continuous Operation
- Supports alternating or parallel processing
👉 Best for Industrial Applications
- Higher throughput than single-chamber systems

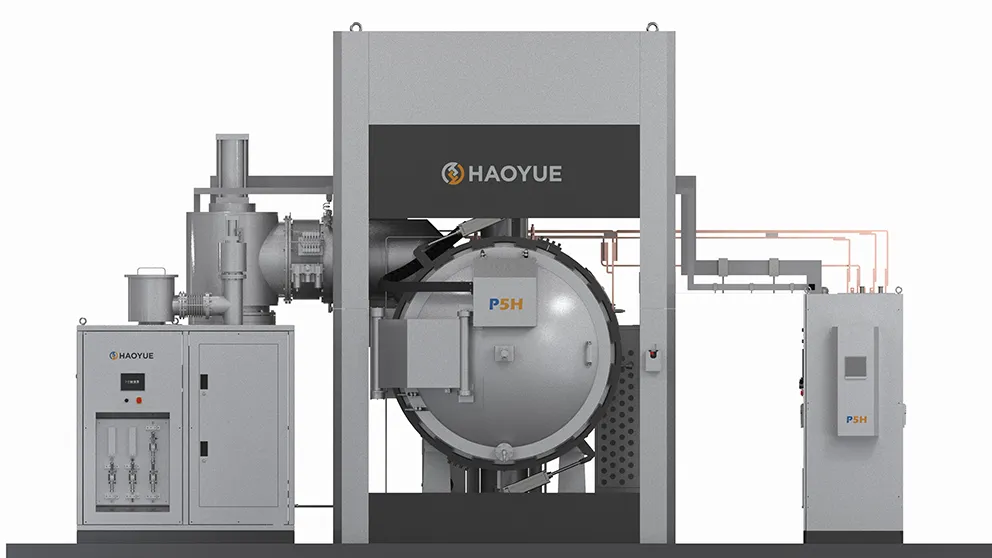

⚖️ P5H vs P5V Hot Press Furnace
| Feature | P5H (Single Chamber) | P5V (Two Chambers) |
|---|---|---|
| Structure | Single chamber | Dual chamber |
| Efficiency | Standard | High |
| Throughput | Medium | High |
| Operation | Batch | Semi-continuous |
| Application | Standard production | High-efficiency production |
👉 Recommendation:
- Standard production → P5H
- High-efficiency production → P5V
🧩 Customization Options
- Chamber size customization
- Pressure system upgrade
- Automation integration
- Thermal field optimization
🎯 Why Choose Us?
- Professional vacuum hot pressing furnace manufacturer
- Full P series product range (P2–P7 + continuous systems)
- Strong expertise in high-temperature sintering technology
- Reliable technical support
📩 Get a Quote
Looking for a reliable dual-chamber vacuum hot pressing furnace supplier?
Contact us today for customized solutions and quotation.
