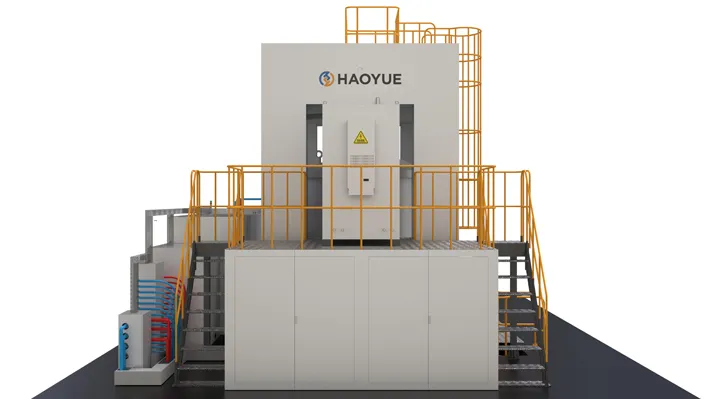

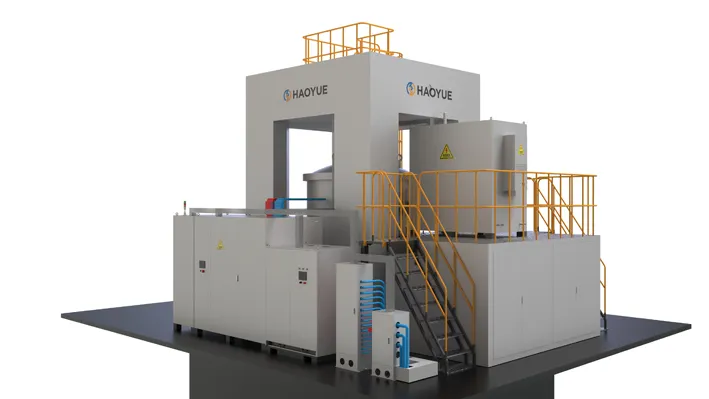

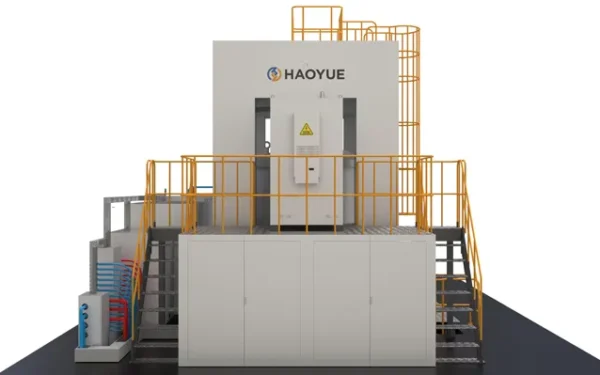

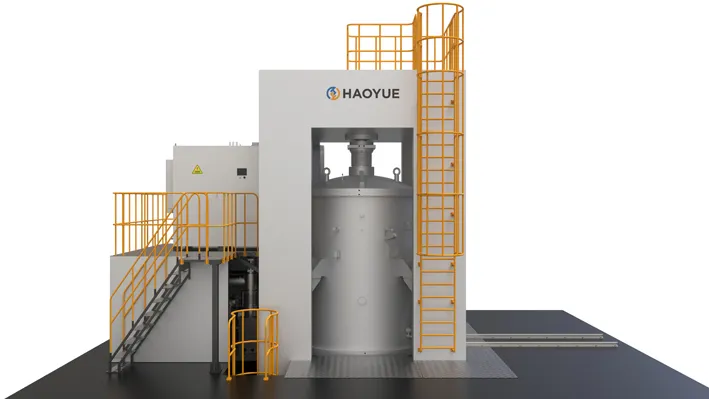

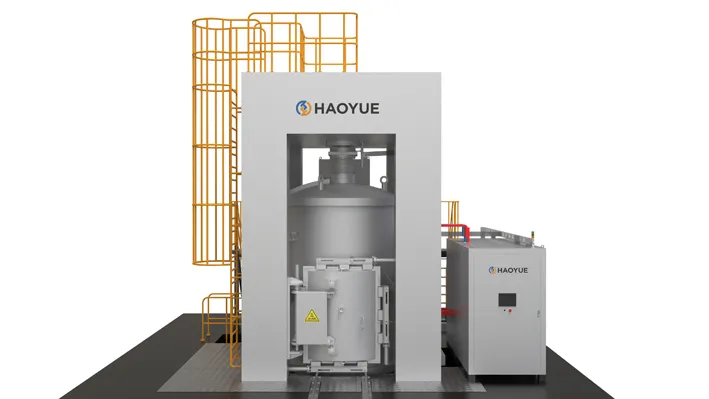

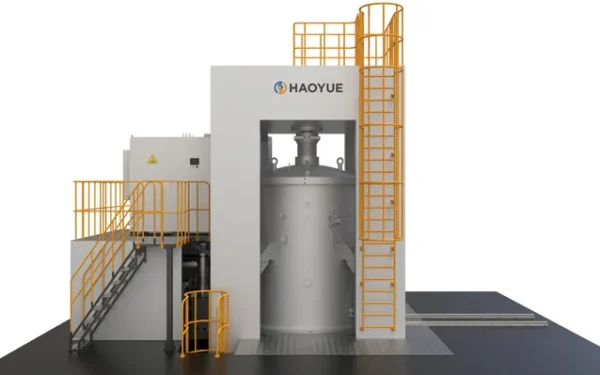

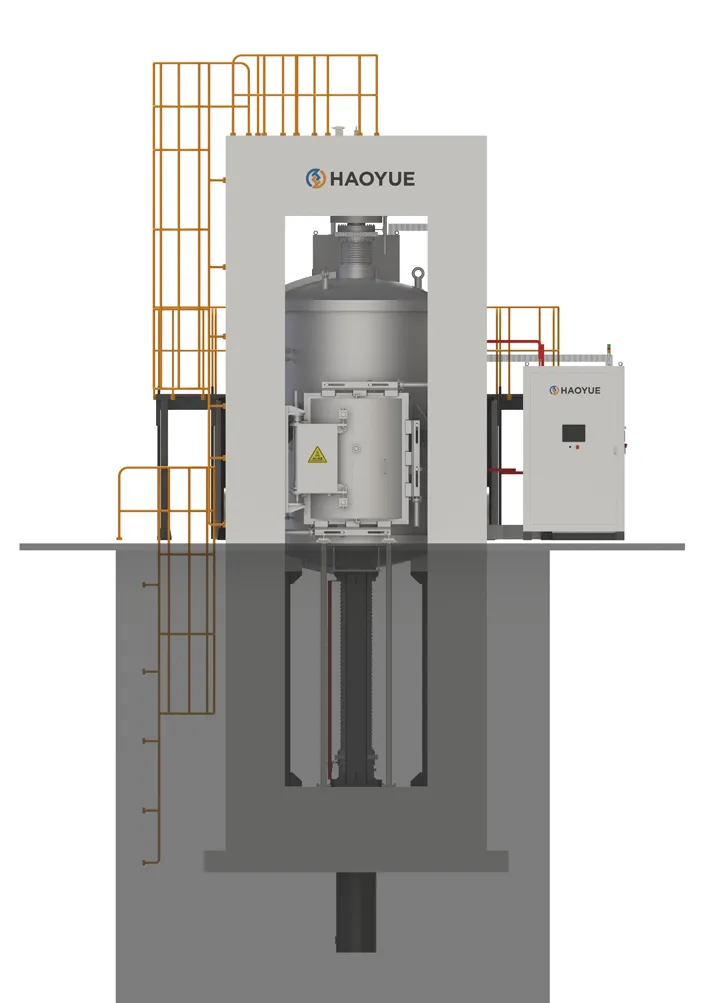

🧩 Product Overview
The SPS Induction Sintering System is an advanced hybrid sintering furnace that combines spark plasma sintering (SPS) technology with induction heating to achieve superior temperature uniformity and processing flexibility.
This system integrates:
- Pulsed DC current (SPS)
- Electromagnetic induction heating
- Uniaxial pressure system
- Vacuum or controlled atmosphere
👉 Enabling:
- Rapid densification of materials
- Improved temperature distribution
- Enhanced processing capability for complex and non-conductive materials
Hybrid SPS systems overcome the limitations of traditional SPS by improving heating uniformity, especially for large or low-conductivity samples
⚙️ Core Applications
This SPS induction system is widely used in:
- Advanced ceramics sintering
- Large-size material processing
- Composite materials
- Semiconductor and electronic materials
- Functional and energy materials
👉 Especially suitable for:
- Non-conductive materials
- Low electrical conductivity powders
- Large or thick components
🔬 Working Principle (Hybrid SPS + Induction Heating)
The system operates through a dual heating mechanism:
1. SPS Heating (Internal)
- Pulsed DC current passes through graphite die
- Generates internal Joule heating
2. Induction Heating (External Support)
- Electromagnetic field heats materials externally
- Enhances temperature uniformity
👉 Combined effect:
- Eliminates radial temperature gradients
- Improves densification uniformity
- Enables processing of difficult materials
SPS itself already enables rapid internal heating and densification within minutes, far faster than traditional sintering
⭐ Key Features & Advantages
✔ Hybrid Heating Technology (Core Advantage)
- Combines internal + external heating
- Improves temperature uniformity
- Reduces thermal gradients
✔ Suitable for Non-Conductive Materials
- Overcomes SPS limitation (requires conductivity)
- Expands application range
✔ Excellent Temperature Uniformity
- Reduced radial temperature difference
- Uniform microstructure and density
✔ Large-Size Material Capability
- Better performance for thick or large samples
- Stable processing across entire volume
✔ Ultra-Fast Sintering Speed
- Heating rates up to hundreds of °C/min
- Short cycle times
✔ High Density & Material Quality
- Near theoretical density
- Fine grain structure
- Improved mechanical properties
✔ Energy Efficient Process
- Reduced sintering time
- Lower overall energy consumption
🧠 Intelligent Control System
- PLC + HMI + PID control
- Independent control of:
- SPS current
- Induction power
- Pressure
- Temperature
- Real-time monitoring and data recording
👉 Enables precise and flexible process control
📊 Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Max Temperature | Up to 2200–2500°C |
| Heating Method | SPS + Induction hybrid |
| Heating Rate | Up to 200–1000°C/min |
| Pressure | Up to 100–300 kN |
| Vacuum Level | ≤ 5 Pa |
| Control System | PLC + Touch Screen |
| Atmosphere | Vacuum / Inert gas |
🏭 Application Fields
This system is ideal for:
- Advanced material research institutes
- Industrial material production
- Semiconductor and electronics industry
- Aerospace and defense
👉 Especially suitable for:
- Large ceramic components
- Functional composites
- Gradient materials
- Non-conductive materials
🚀 Why Choose SPS Induction System?
👉 Best for Uniform Heating
- Eliminates temperature gradients in large samples
👉 Best for Difficult Materials
- Works with non-conductive and complex materials
👉 Best for Advanced Applications
- Enables high-end material innovation
⚖️ SPS vs SPS Induction System
| Feature | Standard SPS | SPS Induction |
|---|---|---|
| Heating Method | Internal only | Internal + External |
| Temperature Uniformity | Medium | High |
| Large Sample Capability | Limited | Excellent |
| Non-Conductive Materials | Limited | Excellent |
| Complexity | Lower | Higher |
👉 Recommendation:
- Standard SPS → Small conductive samples
- SPS Induction → Large / complex / non-conductive materials
🧩 Customization & Turn-Key Solutions
We provide complete hybrid SPS solutions including:
- Furnace system design
- Induction module integration
- Process optimization
- Installation & commissioning
- Technical training
👉 Delivering advanced sintering solutions for next-generation materials
🎯 Why Choose Us?
- Advanced SPS technology manufacturer
- Expertise in hybrid sintering systems
- Full SPS product range (S1–S4 + hybrid systems)
- Strong engineering and after-sales support
📩 Get a Quote
Looking for a reliable SPS induction sintering system supplier?
Contact us today for customized solutions and quotation.
