🧩 Product Overview

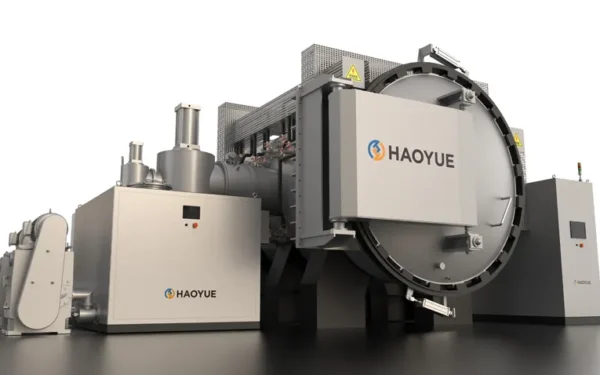

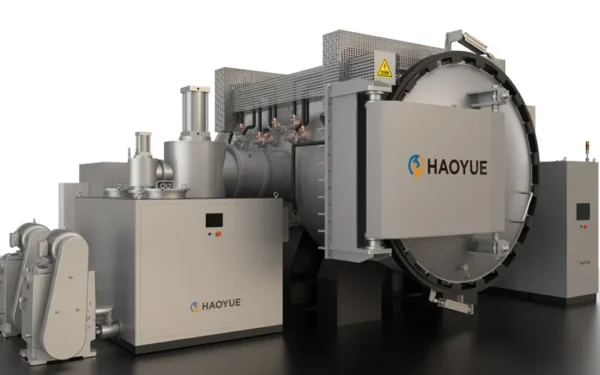

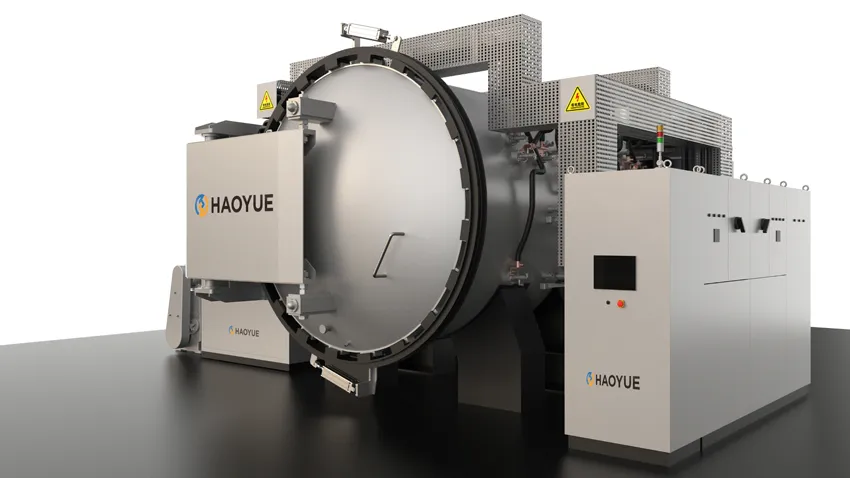

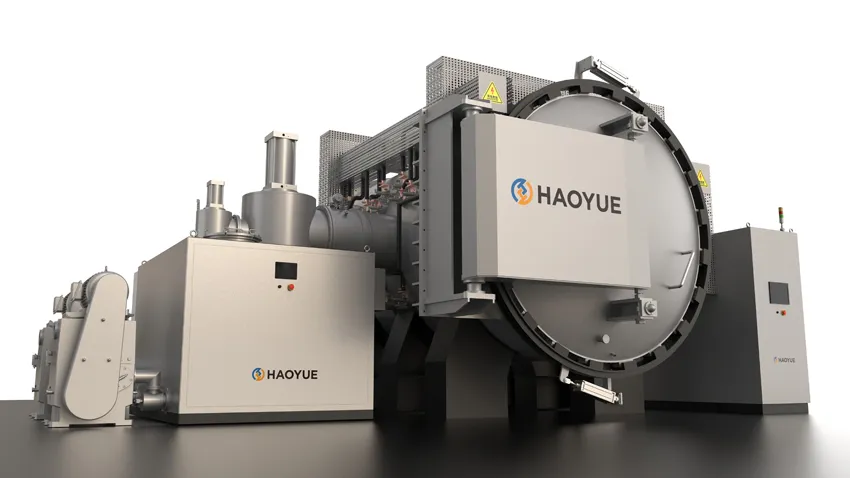

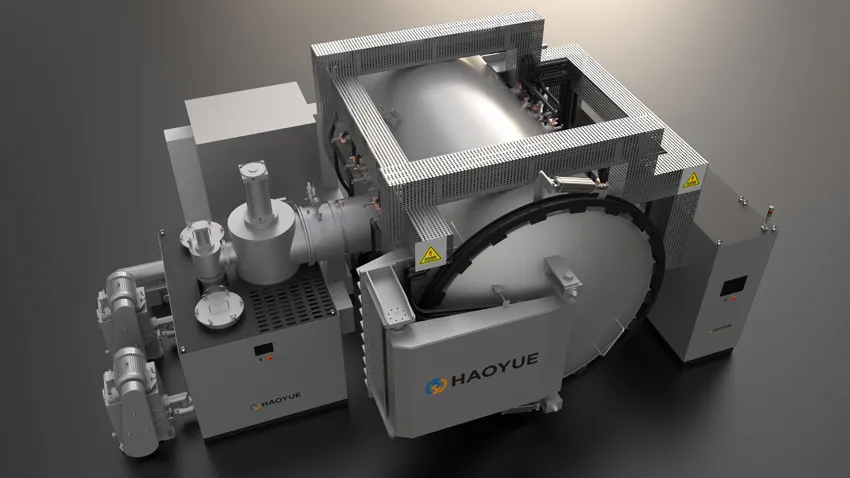

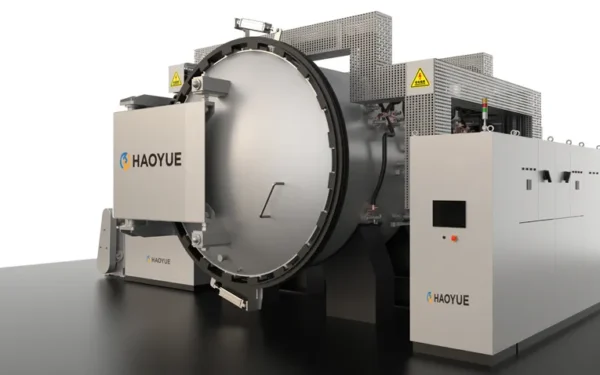

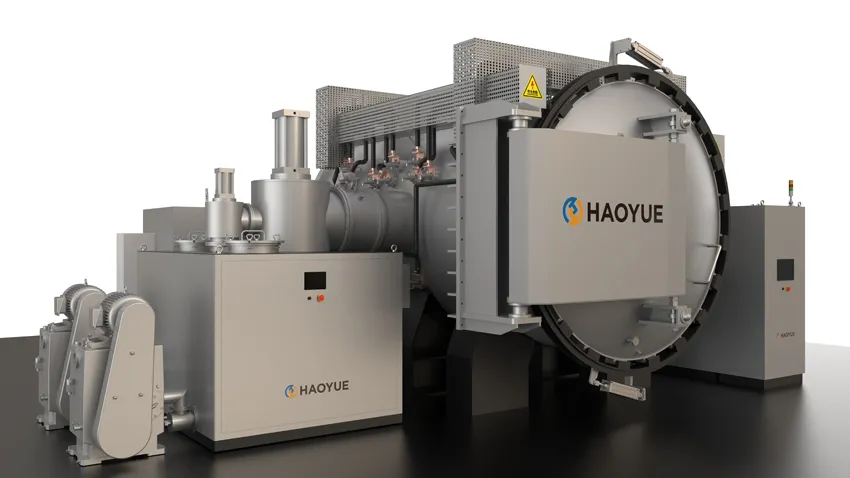

The V Series Graphite Vacuum Furnace is a high-efficiency vacuum resistance furnace using graphite heating elements, designed for high-temperature sintering, annealing, and heat treatment applications.
It is widely used for processing:
- Advanced ceramics
- Cemented carbide (tungsten carbide)
- Composite materials
- Powder metallurgy components
👉 The system provides a clean vacuum environment, ensuring:
- No oxidation
- High material purity
- Excellent microstructure consistency
📌 Graphite heating furnaces are widely applied in high-temperature material processing due to their stability and efficiency
⚙️ Core Applications
This graphite vacuum furnace is ideal for:
- Vacuum sintering furnace for carbide tools
- Advanced ceramics sintering
- Powder metallurgy densification
- High-temperature annealing
- Composite material processing
👉 Especially suitable for:
- Silicon carbide (SiC)
- Boron carbide (B4C)
- Graphite-based materials
- Hard alloys
🔬 Working Principle
This furnace operates as a vacuum resistance heating system using graphite elements, where:
- Materials are placed in a sealed vacuum chamber
- Graphite heating elements generate high temperature
- Controlled vacuum eliminates oxidation
- Materials densify through atomic diffusion
👉 Result:
- Reduced porosity
- Improved density
- Enhanced mechanical properties
⭐ Key Features & Advantages
✔ Graphite Heating System (Core Advantage)
- Excellent high-temperature stability
- Fast heating rate
- Long service life
👉 Ideal for high-temperature sintering up to 2000–2400°C
✔ Superior Temperature Uniformity
- Optimized hot zone design
- Uniformity up to ±5°C
👉 Ensures consistent product quality
✔ High Heating Efficiency
- Rapid heating response
- Shorter production cycles
✔ Stable Vacuum Environment
- Prevents oxidation and contamination
- Ensures high-purity processing
✔ Modular Thermal Field Design
- Optimized insulation (graphite felt)
- Easy maintenance & replacement
✔ Intelligent Automation System
- PLC + HMI control
- Real-time monitoring
- Fully automated operation
👉 Supports smart manufacturing (Industry 4.0)
🧠 Intelligent Control System
- Multi-zone temperature control
- High precision PID regulation
- Data recording & traceability
- Remote diagnosis & upgrade
📊 Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Max Temperature | 2000–2400°C |
| Heating Element | Graphite |
| Vacuum Level | ≤ 10⁻³ Pa |
| Temperature Uniformity | ±5°C |
| Heating Rate | Up to 20°C/min |
| Cooling Method | Gas cooling |
| Control System | PLC + Touch Screen |
🏭 Application Materials
Suitable for high-performance materials such as:
- Silicon carbide (SiC)
- Boron carbide (B₄C)
- Graphene and carbon materials
- Tungsten carbide
- Functional ceramics
👉 Widely used in:
- Aerospace
- Defense industry
- Electronics
- Automotive
🚀 Why Choose Graphite Vacuum Furnace?
👉 Best for High Temperature Processing
- Graphite enables ultra-high temperature capability
👉 Best Cost-Performance Option
- Lower cost compared to tungsten heating systems
👉 High Efficiency Production
- Faster heating = higher throughput
🧩 Customization & Turn-Key Solutions
We provide fully customized vacuum furnace systems, including:
- Furnace size & configuration
- Heating element selection
- Automation integration
- Installation & commissioning
- Operator training
👉 Build a complete vacuum heat treatment solution
🎯 Why Choose Us?
- Professional vacuum furnace manufacturer
- Rich experience in graphite furnace technology
- Exported to Middle East, Europe, Southeast Asia
- Strong engineering & after-sales support
📩 Get a Quote
Looking for a reliable graphite vacuum sintering furnace supplier?
👉 Contact us now for technical consultation and quotation.
