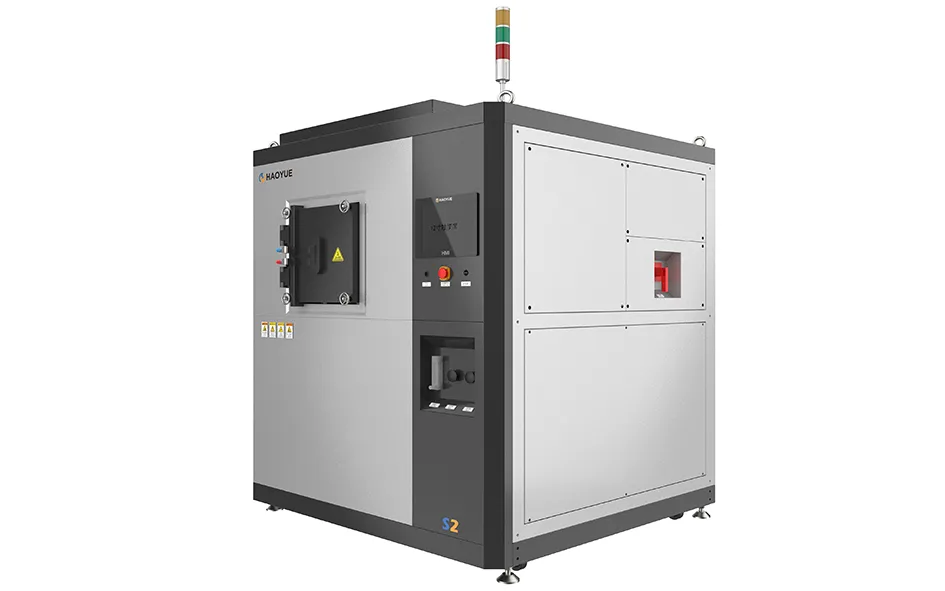

🧩 Product Overview
The S2 SPS Sintering System is a medium-scale spark plasma sintering (SPS) furnace designed for both laboratory research and pilot-scale production of advanced materials.
This system combines:
- Pulsed DC current heating
- High-precision pressure control
- Vacuum or controlled atmosphere
👉 Enabling:
- Rapid densification of powder materials
- High production efficiency
- Stable and repeatable sintering performance
Spark plasma sintering applies pulsed current and axial pressure to achieve fast densification with controlled microstructure and reduced energy consumption
⚙️ Core Applications
The S2 SPS system is widely used in:
- Advanced ceramics production
- Powder metallurgy and hard materials
- Composite materials manufacturing
- Nanomaterials and functional materials
- Battery and energy materials
👉 Typical materials include:
- Tungsten carbide
- Silicon carbide (SiC)
- Boron carbide (B₄C)
- Metal powders (Fe, Ni, Ti, Cu)
- Nano-structured materials
🔬 Working Principle (SPS Technology)
The system operates using field-assisted sintering (FAST):
- Powder is loaded into a graphite die
- Pulsed DC current passes through the material
- Internal Joule heating is generated
- Axial pressure is applied simultaneously
- Rapid densification occurs
👉 Key results:
- Fast heating and cooling cycles
- Short sintering time
- High-density materials with fine grain structure
⭐ Key Features & Advantages
✔ Fast Heating & Short Cycle Time (Core Advantage)
- Heating rate up to ~200°C/min
- Rapid heating and cooling
👉 Significantly reduces production time and cost
✔ Medium-Scale Production Capability
- Larger capacity than laboratory SPS systems
- Suitable for pilot production and small batch manufacturing
✔ High Pressure Accuracy
- Servo-controlled pressure system
- Precision up to ±3‰
✔ High Material Density & Uniformity
- Dense and uniform microstructure
- Reduced porosity and defects
✔ Lower Sintering Temperature
- Reduced energy consumption
- Improved material performance
✔ Energy Efficient Operation
- Optimized DC pulse power supply
- Reduced power consumption
✔ Flexible Atmosphere Control
- Vacuum environment
- Inert gas processing (Ar, N₂)
🧠 Intelligent Control System
- PLC + HMI control system
- Real-time monitoring of:
- Temperature
- Pressure
- Current
- Programmable sintering curves
- Data recording and repeatability
👉 Ensures stable and repeatable production
📊 Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Max Temperature | Up to 2400–2500°C |
| Heating Rate | Up to 200°C/min |
| Pressure Range | Up to 100–300 kN |
| Vacuum Level | ≤ 5 Pa |
| Power | ~50–100 kW |
| Current | Up to 5000–10000 A |
| Control System | PLC + Touch Screen |
🏭 Application Fields
This system is ideal for:
- Research institutes and universities
- Advanced material R&D centers
- Pilot-scale production facilities
- High-performance material manufacturing
👉 Especially suitable for:
- Functional ceramics
- Hard materials
- Nano-materials
- Energy materials
🚀 Why Choose S2 SPS Sintering System?
👉 Best for Pilot Production
- Bridges the gap between lab and industrial scale
👉 Best for Efficiency + Flexibility
- Faster than conventional furnaces
- More flexible than large industrial systems
👉 Best for Advanced Materials
- Enables precise control of microstructure
⚖️ S1 vs S2 SPS System (关键转化点)
| Feature | S1 SPS System | S2 SPS System |
|---|---|---|
| Scale | Laboratory | Pilot / Small production |
| Capacity | Small samples | Medium batch |
| Power | Lower | Higher |
| Application | Research | R&D + Production |
| Flexibility | High | High |
👉 Recommendation:
- Pure research → S1 SPS
- Research + small production → S2 SPS
🧩 Customization & Upgrade Options
Optional configurations include:
- High-pressure modules
- Advanced vacuum systems
- Automated loading systems
- Data acquisition upgrades
🎯 Why Choose Us?
- Professional SPS furnace manufacturer
- Strong expertise in advanced sintering technology
- Customized solutions for research and production
- Reliable technical and after-sales support
📩 Get a Quote
Looking for a reliable S2 SPS sintering system supplier?
Contact us today for customized solutions and quotation.
