🧩 Product Overview

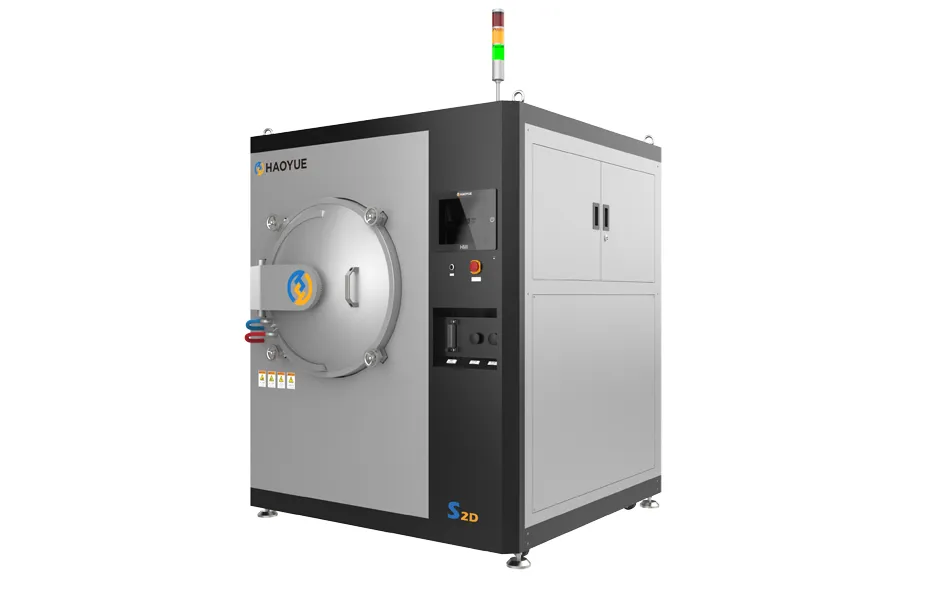

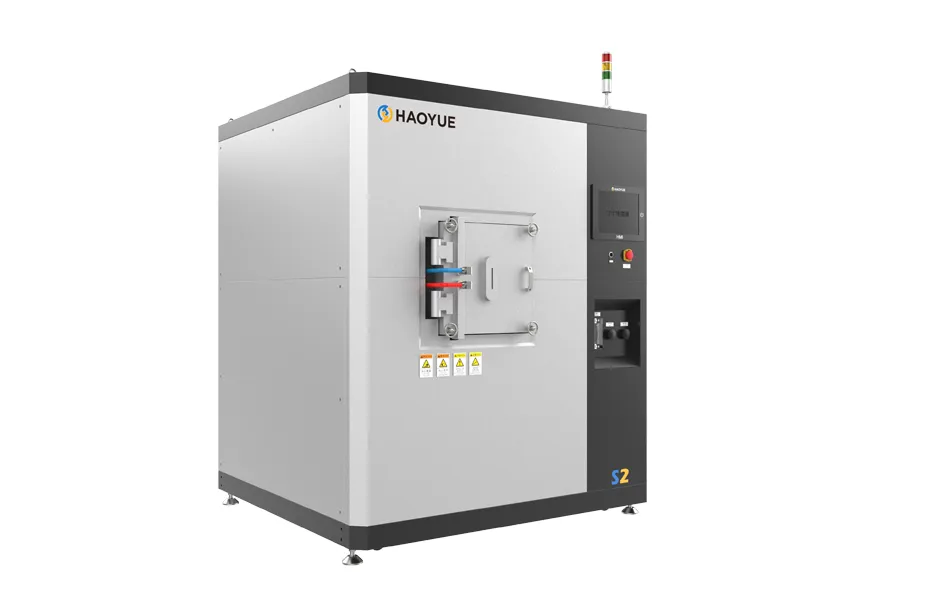

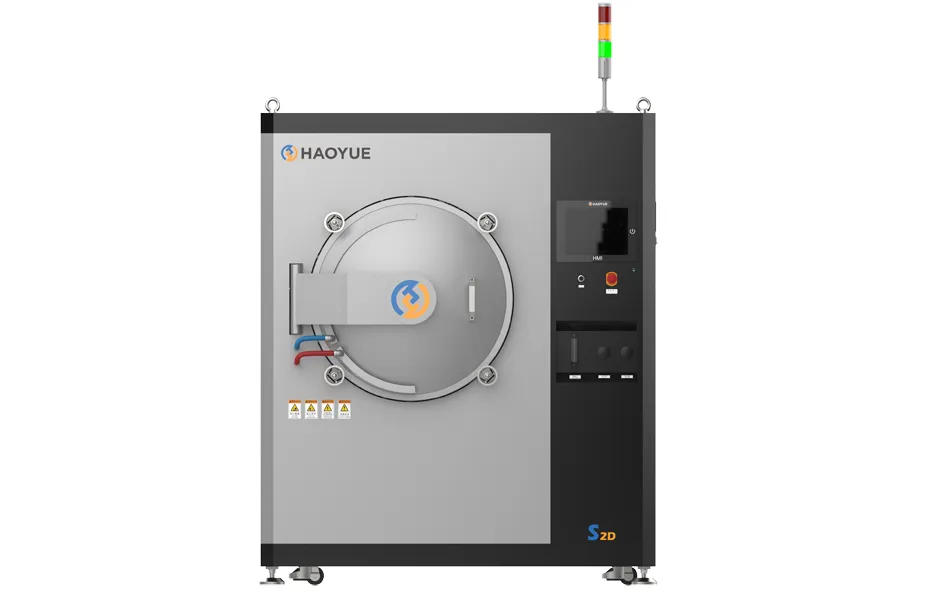

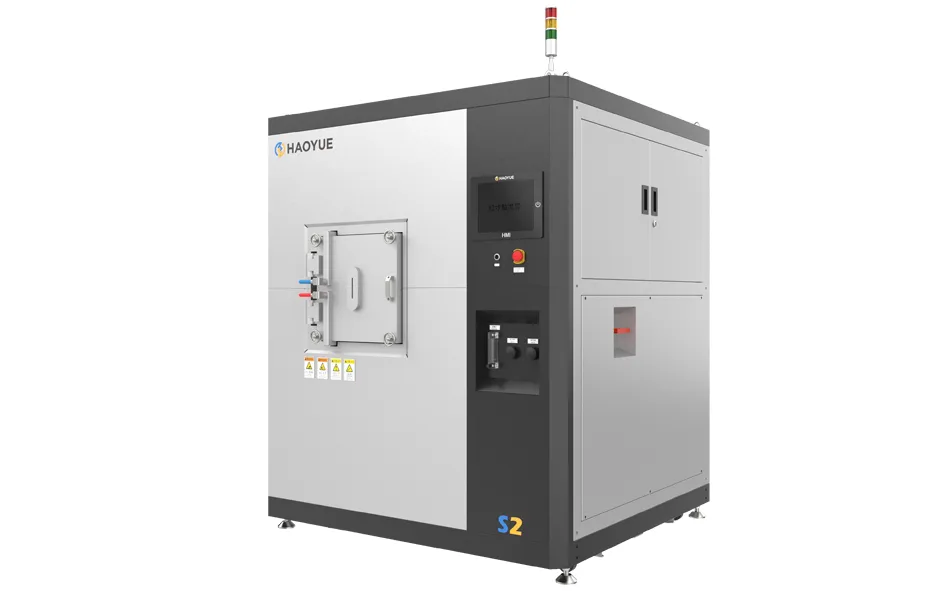

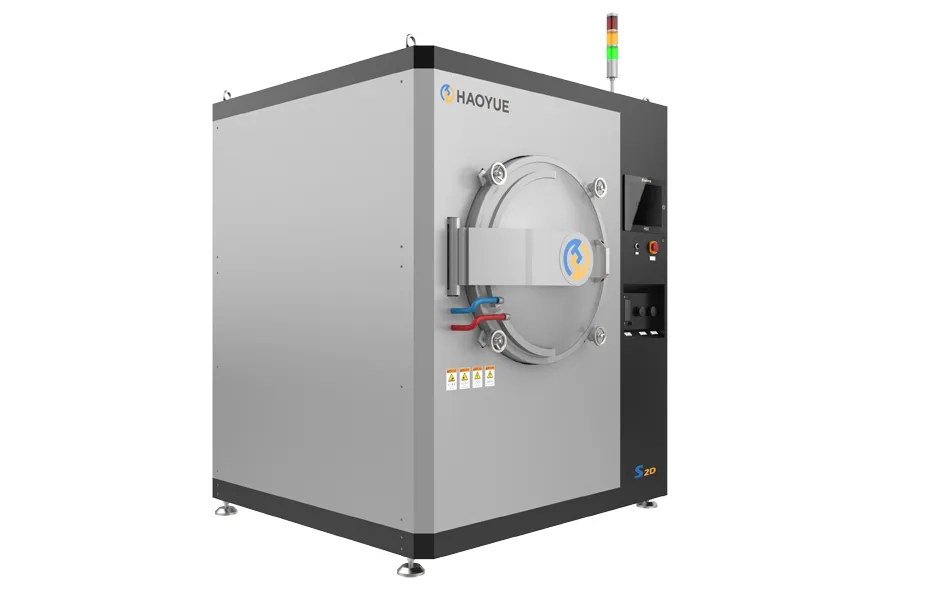

The S Series SPS Laboratory Furnace (Spark Plasma Sintering Furnace) is an advanced field-assisted sintering system designed for rapid densification of powder materials under simultaneous pressure and pulsed electric current.
This system combines:
- Pulsed DC current heating
- Uniaxial pressure
- Vacuum or controlled atmosphere
👉 Enabling:
- Ultra-fast sintering
- High-density materials
- Precise microstructure control
Spark plasma sintering is a highly efficient technique that uses pulsed electric current and pressure to rapidly densify materials with minimal grain growth.
⚙️ Core Applications
This SPS laboratory furnace is widely used in:
- Advanced ceramics research
- Powder metallurgy and hard materials
- Nanomaterials and functional materials
- Composite materials development
- Battery and energy materials
👉 Typical materials include:
- Tungsten carbide
- Silicon carbide (SiC)
- Boron carbide (B₄C)
- Graphene and nano-structured materials
🔬 Working Principle (SPS Technology)
The SPS system operates using pulsed direct current and pressure-assisted sintering:
- Powder is loaded into a graphite die
- Pulsed DC current passes directly through the material
- Joule heating occurs internally
- Mechanical pressure is applied simultaneously
- Rapid densification is achieved
👉 Key results:
- Heating rates up to hundreds of °C per minute
- Extremely short sintering cycles
- High density with minimal grain growth
⭐ Key Features & Advantages
✔ Ultra-Fast Sintering Speed (Core Advantage)
- Heating rates up to 600–1000°C/min
- Sintering completed in minutes
👉 Much faster than conventional furnaces
✔ Simultaneous Pressure + Heating
- Axial pressure up to high tonnage
- Improves densification and bonding
✔ High Density & Material Quality
- Near theoretical density
- Improved mechanical properties
- Uniform microstructure
✔ Minimal Grain Growth
- Short processing time preserves nano-structure
- Ideal for advanced materials
✔ Lower Sintering Temperature
- Reduced energy consumption
- Protects material properties
✔ Flexible Atmosphere Control
- Vacuum environment
- Inert gas (Ar, N₂) support
🧠 Intelligent Control System
- PLC + HMI control system
- Real-time monitoring of:
- Temperature
- Pressure
- Current
- Fully programmable sintering cycles
- Data recording and repeatability
📊 Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Max Temperature | Up to 2000–2500°C |
| Heating Rate | Up to 1000°C/min |
| Pressure Range | Up to 1000 kN |
| Vacuum Level | ≤ 10⁻³ Pa |
| Atmosphere | Vacuum / Inert gas |
| Control System | PLC + Touch Screen |
| Heating Method | Pulsed DC current |
🏭 Application Fields
This SPS furnace is ideal for:
- Scientific research institutes
- University laboratories
- Advanced material R&D centers
- Aerospace and defense research
👉 Especially suitable for:
- Nano-material development
- High-performance ceramics
- Functional materials
🚀 Why Choose SPS Laboratory Furnace?
👉 Best for Research & Development
- Precise control of material structure
👉 Best for Fast Sintering
- Dramatically reduces experiment time
👉 Best for Advanced Materials
- Enables new material innovation
⚖️ SPS vs Traditional Sintering Furnace
| Feature | SPS Furnace | Conventional Furnace |
|---|---|---|
| Heating Speed | Ultra-fast | Slow |
| Sintering Time | Minutes | Hours |
| Grain Growth | Minimal | Significant |
| Density | Very high | Medium |
| Energy Efficiency | High | Lower |
👉 Conclusion:
SPS is the most advanced sintering technology for laboratory and high-end material development
🧩 Customization & Turn-Key Solutions
We provide complete SPS solutions including:
- Laboratory system configuration
- Process parameter optimization
- Mold and tooling design
- Installation and training
- Technical support
🎯 Why Choose Us?
- Professional SPS furnace manufacturer
- Strong experience in advanced sintering technology
- Customized solutions for research applications
- Reliable technical support
📩 Get a Quote
Looking for a high-performance SPS laboratory furnace supplier?
Contact us today for customized solutions and quotation.
