🧩 Product Overview

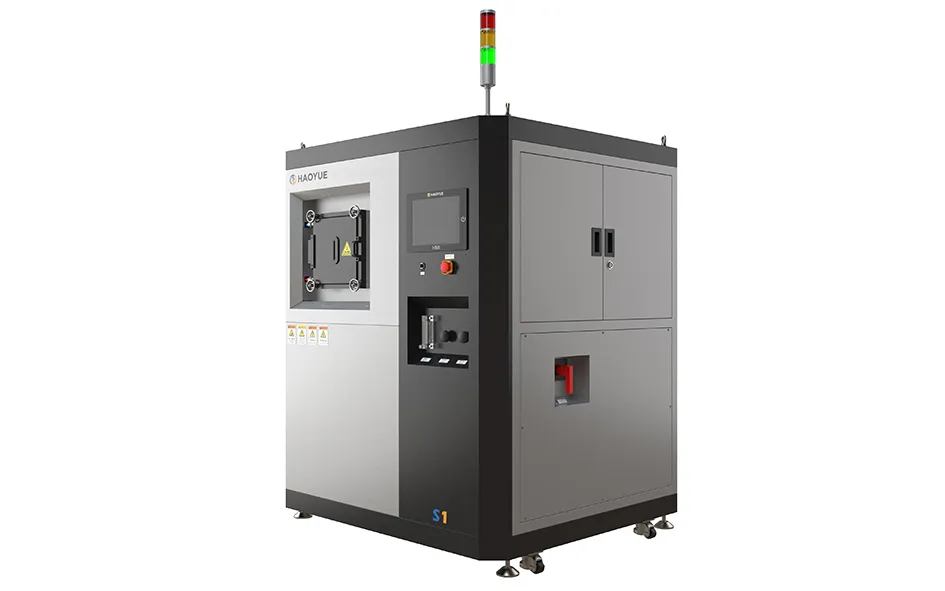

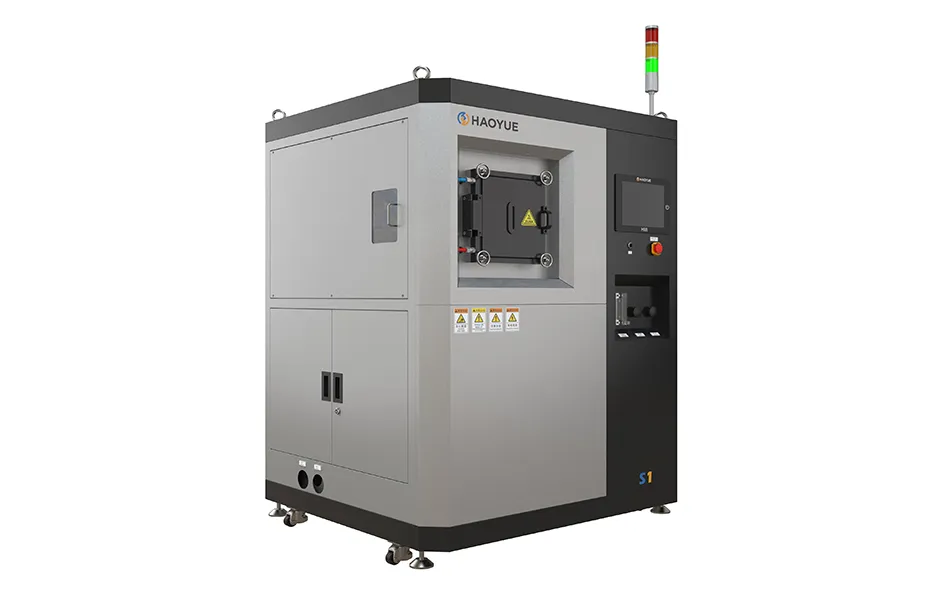

The S1 SPS Sintering System is a compact spark plasma sintering (SPS) furnace designed for laboratory research and small-scale advanced material production.
This system utilizes:
- Pulsed DC current heating
- Uniaxial pressure
- Vacuum or controlled atmosphere
👉 Enabling:
- Rapid densification of powders
- High material density
- Precise microstructure control
Spark plasma sintering is an advanced technique that combines electric current and pressure to achieve fast and efficient material consolidation.
⚙️ Core Applications
The S1 SPS system is ideal for:
- Laboratory material research
- Advanced ceramics development
- Powder metallurgy experiments
- Nanomaterials and functional materials
- Composite material prototyping
👉 Typical materials include:
- Tungsten carbide
- Silicon carbide (SiC)
- Boron carbide (B₄C)
- Metal powders (Fe, Cu, Ti, Ni)
🔬 Working Principle (SPS Technology)
The system operates using field-assisted sintering (FAST) technology:
- Powder is loaded into a graphite mold
- Pulsed DC current passes through the material
- Internal Joule heating is generated
- Axial pressure is applied simultaneously
- Rapid densification occurs
👉 Key results:
- Fast heating rates
- Short sintering cycles
- High density with minimal grain growth
⭐ Key Features & Advantages
✔ Compact Laboratory Design (Core Advantage)
- Small footprint
- Easy installation
- Ideal for research environments
✔ Rapid Heating Performance
- Heating rates up to ~200°C/min
- Significantly reduces processing time
✔ High Temperature Capability
- Maximum temperature up to 2400–2500°C
✔ High Pressure Accuracy
- Servo-controlled pressure system
- Precision up to ±3‰
✔ Excellent Material Quality
- High density
- Fine grain structure
- Improved mechanical properties
✔ Energy Efficient Operation
- Short cycle time reduces power consumption
- Optimized DC pulse power supply
✔ Flexible Process Control
- Supports vacuum and inert atmosphere
- Adjustable pressure and temperature profiles
🧠 Intelligent Control System
- PLC + HMI control interface
- Real-time monitoring of:
- Temperature
- Pressure
- Current
- Programmable sintering recipes
- Data recording and repeatability
📊 Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Sample Diameter | Φ20–30 mm |
| Pressure | Up to 50 kN |
| Max Temperature | 2400°C |
| Heating Rate | Up to 200°C/min |
| Vacuum Level | ≤ 5 Pa |
| Power | ~30 kW |
| Current | Up to 3000 A |
🏭 Application Fields
This system is widely used in:
- Universities and research institutes
- Advanced material laboratories
- R&D centers
- Pilot-scale production facilities
👉 Suitable for:
- Nanomaterials
- Functional ceramics
- High-performance alloys
🚀 Why Choose S1 SPS Sintering System?
👉 Best for Laboratory Research
- Compact and flexible system
👉 Best for Rapid Experimentation
- Short sintering cycles (minutes instead of hours)
👉 Best for Advanced Materials Development
- Enables precise control of microstructure
⚖️ S1 SPS vs Traditional Laboratory Furnace
| Feature | S1 SPS System | Conventional Furnace |
|---|---|---|
| Heating Speed | High | Low |
| Sintering Time | Minutes | Hours |
| Grain Growth | Minimal | Significant |
| Density | High | Medium |
| Process Control | Precise | Limited |
👉 Conclusion:
SPS technology is the most efficient solution for laboratory-scale advanced material sintering
🧩 Customization & Upgrade Options
Optional configurations include:
- Gas quenching system
- Glove box integration
- High vacuum pump upgrade
- Advanced data acquisition system
🎯 Why Choose Us?
- Professional SPS furnace manufacturer
- Strong expertise in advanced sintering technology
- Customized solutions for research applications
- Reliable technical support
📩 Get a Quote
Looking for a reliable SPS laboratory sintering system supplier?
Contact us today for customized solutions and quotation.
